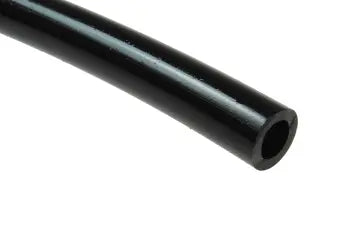

PT0203-2500K by Coilhose | Tubing | 1/8" OD x 1/16" ID | 0.031" Wall Thickness | Black | Polyurethane | 2500ft

Save $220.60

$551.50

$551.50 - $551.50

$551.50

$330.90

$330.90 - $330.90

$330.90

Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/8" OD x 1/16" ID

Quantity

Specifications for Variant SKU: PT0203-2500K Coilhose
Hose Color(s):	Black
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 50ft Length	Part Number 250ft Length	Part Number 500ft Length	Part Number 1000ft Length	Part Number 2500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT0203-50K	PT0203-250K PT0203-250KD*	PT0203-500K	-	PT0203-2500K	Black	1/8" x 1/16"	0.031"	255 PSI
PT0203-50B	PT0203-250B	PT0203-500B	PT0203-1000B	PT0203-2500B	Blue
PT0203-50G	PT0203-250G	PT0203-500G	-	PT0203-2500G	Green
PT0203-50R	PT0203-250R	PT0203-500R	-	-	Red
PT0203-50TB	PT0203-250TB PT0203-250TBD*	PT0203-500TB	-	PT0203-2500TB	Transparent Blue
PT0203-50TC PT0203-50TCD*	PT0203-250TC PT0203-250TCD*	PT0203-500TC	PT0203-1000TC	PT0203-2500TC	Transparent Clear
PT0203-50TY	PT0203-250TY	PT0203-500TY	-	-	Transparent Yellow
PT0203-50Y	PT0203-250Y	PT0203-500Y	-	-	Yellow
-	-	-	PT0203-1000TR	-	Transparent Red

* Comes in a Dispenser Box
