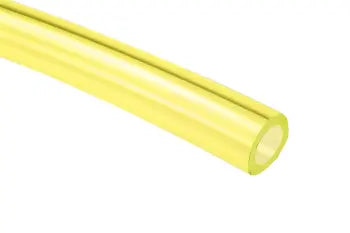

PT0203-250TY by Coilhose | Tubing | 1/8" OD x 1/16" ID | 0.031" Wall Thickness | Transparent Yellow | Polyurethane | 250ft

PT0203-250TY by Coilhose | Tubing | 1/8" OD x 1/16" ID | 0.031" Wall Thickness | Transparent Yellow | Polyurethane | 250ft

Save $28.46 Save $28.46
$71.15
$71.15 - $71.15
$71.15
$42.69
$42.69 - $42.69
$42.69
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/8" OD x 1/16" ID
Specifications for Variant SKU: PT0203-250TY Coilhose
Hose Color(s): Yellow
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
50ft Length		 Part Number
250ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Part Number
2500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0203-50K PT0203-250K
PT0203-250KD* 		PT0203-500K - PT0203-2500K Black 1/8" x 1/16" 0.031" 255 PSI
PT0203-50B PT0203-250B PT0203-500B PT0203-1000B PT0203-2500B Blue
PT0203-50G PT0203-250G PT0203-500G - PT0203-2500G Green
PT0203-50R PT0203-250R PT0203-500R - - Red
PT0203-50TB PT0203-250TB
PT0203-250TBD* 		PT0203-500TB - PT0203-2500TB Transparent Blue
PT0203-50TC
PT0203-50TCD* 		PT0203-250TC
PT0203-250TCD* 		PT0203-500TC PT0203-1000TC PT0203-2500TC Transparent Clear
PT0203-50TY PT0203-250TY PT0203-500TY - - Transparent Yellow
PT0203-50Y PT0203-250Y PT0203-500Y - - Yellow
* Comes in a Dispenser Box
