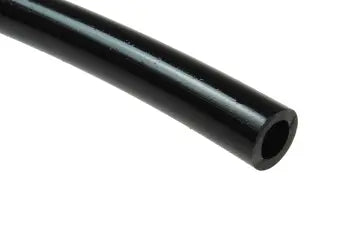

PT0203-50K by Coilhose | Tubing | 1/8" OD x 1/16" ID | 0.031" Wall Thickness | Black | Polyurethane | 50ft

Save $1.15

$10.31

$10.31 - $10.31

$10.31

$9.16

$9.16 - $9.16

$9.16

Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/8" OD x 1/16" ID

Quantity

Specifications for Variant SKU: PT0203-50K Coilhose
Hose Color(s):	Black
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 50ft Length	Part Number 250ft Length	Part Number 500ft Length	Part Number 1000ft Length	Part Number 2500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT0203-50K	PT0203-250K PT0203-250KD*	PT0203-500K	-	PT0203-2500K	Black	1/8" x 1/16"	0.031"	255 PSI
PT0203-50B	PT0203-250B	PT0203-500B	PT0203-1000B	PT0203-2500B	Blue
PT0203-50G	PT0203-250G	PT0203-500G	-	PT0203-2500G	Green
PT0203-50R	PT0203-250R	PT0203-500R	-	-	Red
PT0203-50TB	PT0203-250TB PT0203-250TBD*	PT0203-500TB	-	PT0203-2500TB	Transparent Blue
PT0203-50TC PT0203-50TCD*	PT0203-250TC PT0203-250TCD*	PT0203-500TC	PT0203-1000TC	PT0203-2500TC	Transparent Clear
PT0203-50TY	PT0203-250TY	PT0203-500TY	-	-	Transparent Yellow
PT0203-50Y	PT0203-250Y	PT0203-500Y	-	-	Yellow
-	-	-	PT0203-1000TR	-	Transparent Red

* Comes in a Dispenser Box

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
