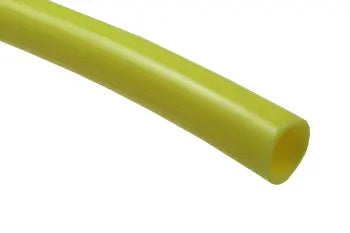

PT0404-1000Y by Coilhose | Tubing | 1/4" OD x .160" ID | .045" Wall Thickness | Yellow | Polyurethane | 1000ft

PT0404-1000Y by Coilhose | Tubing | 1/4" OD x .160" ID | .045" Wall Thickness | Yellow | Polyurethane | 1000ft

Save $50.68 Save $50.68
$456.13
$456.13 - $456.13
$456.13
$405.45
$405.45 - $405.45
$405.45
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/4" OD x .160" ID
Specifications for Variant SKU: PT0404-1000Y Coilhose
Hose Color(s): Yellow
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0404-100R PT0404-500R PT0404-1000R Red 1/4" x .160" 0.045" 175 PSI
PT0404-100W PT0404-500W PT0404-1000W White
PT0404-100TB
PT0404-100TBD* 		PT0404-500TB PT0404-1000TB Transparent Blue
PT0404-100P PT0404-500P PT0404-1000P Purple
PT0404-100Q PT0404-500Q PT0404-1000Q Orange
PT0404-100NG PT0404-500NG PT0404-1000NG Neon Green
PT0404-100G PT0404-500G PT0404-1000G Green
PT0404-100X PT0404-500X PT0404-1000X Gray
PT0404-100B PT0404-500B PT0404-1000B Blue
PT0404-100K
PT0404-100KD* 		PT0404-500K PT0404-1000K Black
PT0404-100Y PT0404-500Y PT0404-1000Y Yellow
PT0404-100TY PT0404-500TY PT0404-1000TY Transparent Yellow
PT0404-100TR PT0404-500TR PT0404-1000TR Transparent Red
PT0404-100TG PT0404-500TG PT0404-1000TG Transparent Green
PT0404-100TCD* PT0404-500TC PT0404-1000TC Transparent Clear
* Comes in Dispenser Box
