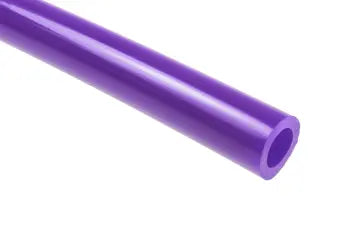

PT0404-500P by Coilhose | Tubing | 1/4" OD x .160" ID | .045" Wall Thickness | Purple | Polyurethane | 500ft

PT0404-500P by Coilhose | Tubing | 1/4" OD x .160" ID | .045" Wall Thickness | Purple | Polyurethane | 500ft

Save $27.22 Save $27.22
$244.95
$244.95 - $244.95
$244.95
$217.73
$217.73 - $217.73
$217.73
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/4" OD x .160" ID
Specifications for Variant SKU: PT0404-500P Coilhose
Hose Color(s): Purple
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0404-100R PT0404-500R PT0404-1000R Red 1/4" x .160" 0.045" 175 PSI
PT0404-100W PT0404-500W - White
PT0404-100TB
PT0404-100TBD* 		PT0404-500TB PT0404-1000TB Transparent Blue
PT0404-100P PT0404-500P PT0404-1000P Purple
PT0404-100Q PT0404-500Q PT0404-1000Q Orange
PT0404-100NG PT0404-500NG PT0404-1000NG Neon Green
PT0404-100G PT0404-500G PT0404-1000G Green
PT0404-100X PT0404-500X PT0404-1000X Gray
PT0404-100B PT0404-500B PT0404-1000B Blue
PT0404-100K
PT0404-100KD* 		PT0404-500K PT0404-1000K Black
PT0404-100Y PT0404-500Y PT0404-1000Y Yellow
PT0404-100TY PT0404-500TY PT0404-1000TY Transparent Yellow
PT0404-100TR PT0404-500TR PT0404-1000TR Transparent Red
PT0404-100TG PT0404-500TG PT0404-1000TG Transparent Green
PT0404-100TCD* PT0404-500TC PT0404-1000TC Transparent Clear
* Comes in Dispenser Box
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
