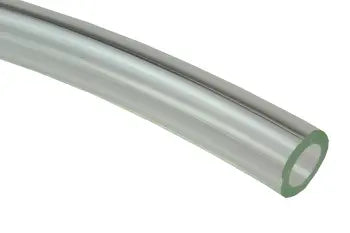

PT0404-100TCD by Coilhose | Tubing | 1/4" OD x .160" ID | .045" Wall Thickness | Transparent Clear | Dispenser Box | Polyurethane | 100ft

Save $6.35

$57.18

$57.18 - $57.18

$57.18

$50.83

$50.83 - $50.83

$50.83

Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/4" OD x .160" ID

Quantity

Specifications for Variant SKU: PT0404-100TCD Coilhose
Hose Color(s):	Clear/Semi-Clear
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 100ft Length	Part Number 500ft Length	Part Number 1000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT0404-100R	PT0404-500R	PT0404-1000R	Red	1/4" x .160"	0.045"	175 PSI
PT0404-100W	PT0404-500W	-	White
PT0404-100TB PT0404-100TBD*	PT0404-500TB	PT0404-1000TB	Transparent Blue
PT0404-100P	PT0404-500P	PT0404-1000P	Purple
PT0404-100Q	PT0404-500Q	PT0404-1000Q	Orange
PT0404-100NG	PT0404-500NG	PT0404-1000NG	Neon Green
PT0404-100G	PT0404-500G	PT0404-1000G	Green
PT0404-100X	PT0404-500X	PT0404-1000X	Gray
PT0404-100B	PT0404-500B	PT0404-1000B	Blue
PT0404-100K PT0404-100KD*	PT0404-500K	PT0404-1000K	Black
PT0404-100Y	PT0404-500Y	PT0404-1000Y	Yellow
PT0404-100TY	PT0404-500TY	PT0404-1000TY	Transparent Yellow
PT0404-100TR	PT0404-500TR	PT0404-1000TR	Transparent Red
PT0404-100TG	PT0404-500TG	PT0404-1000TG	Transparent Green
PT0404-100TCD*	PT0404-500TC	PT0404-1000TC	Transparent Clear

* Comes in Dispenser Box
