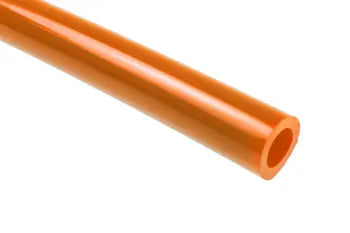

PT0610-100Q by Coilhose | Tubing | 6mm OD x 4mm ID | 1.0 mm Wall Thickness | Orange | Polyurethane | 100ft

PT0610-100Q by Coilhose | Tubing | 6mm OD x 4mm ID | 1.0 mm Wall Thickness | Orange | Polyurethane | 100ft

Save $5.28 Save $5.28
$47.55
$47.55 - $47.55
$47.55
$42.27
$42.27 - $42.27
$42.27
Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 6.0mm OD x 4.0mm ID
Specifications for Variant SKU: PT0610-100Q Coilhose
Hose Color(s): Orange
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0610-100K PT0610-500K PT0610-1000K Black 6.0mm x 4.0mm 1.0mm 160 PSI
PT0610-100Y PT0610-500Y PT0610-1000Y Yellow
PT0610-100W PT0610-500W - White
PT0610-100TC PT0610-500TC PT0610-1000TC Transparent Clear
PT0610-100TB PT0610-500TB PT0610-1000TB Transparent Blue
PT0610-100R PT0610-500R PT0610-1000R Red
PT0610-100Q PT0610-500Q PT0610-1000Q Orange
PT0610-100G PT0610-500G PT0610-1000G Green
PT0610-100B PT0610-500B PT0610-1000B Blue
