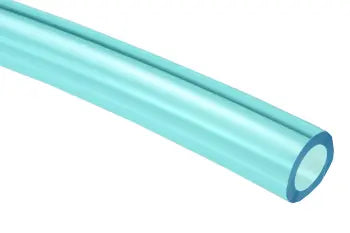

PT0610-100TB by Coilhose | Tubing | 6mm OD x 4mm ID | 1.0 mm Wall Thickness | Transparent Blue | Polyurethane | 100ft

PT0610-100TB by Coilhose | Tubing | 6mm OD x 4mm ID | 1.0 mm Wall Thickness | Transparent Blue | Polyurethane | 100ft

Save $5.28 Save $5.28
$47.55
$47.55 - $47.55
$47.55
$42.27
$42.27 - $42.27
$42.27
Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 6.0mm OD x 4.0mm ID
Specifications for Variant SKU: PT0610-100TB Coilhose
Hose Color(s): Blue
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0610-100K PT0610-500K PT0610-1000K Black 6.0mm x 4.0mm 1.0mm 160 PSI
PT0610-100Y PT0610-500Y PT0610-1000Y Yellow
PT0610-100W PT0610-500W - White
PT0610-100TC PT0610-500TC PT0610-1000TC Transparent Clear
PT0610-100TB PT0610-500TB PT0610-1000TB Transparent Blue
PT0610-100R PT0610-500R PT0610-1000R Red
PT0610-100Q PT0610-500Q PT0610-1000Q Orange
PT0610-100G PT0610-500G PT0610-1000G Green
PT0610-100B PT0610-500B PT0610-1000B Blue
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.

Shop Parts by Coilhose Pneumatics
