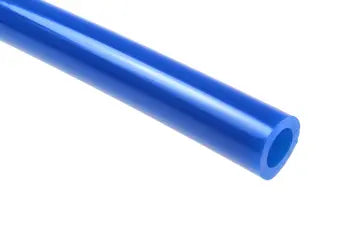

PT0610-500B by Coilhose | Tubing | 6mm OD x 4mm ID | 1.0 mm Wall Thickness | Blue | Polyurethane | 500ft

Save $143.05

$357.62

$357.62 - $357.62

$357.62

$214.57

$214.57 - $214.57

$214.57

Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 6.0mm OD x 4.0mm ID

Specifications for Variant SKU: PT0610-500B Coilhose
Hose Color(s):	Blue
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Metric Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 100ft Length	Part Number 500ft Length	Part Number 1000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT0610-100K	PT0610-500K	PT0610-1000K	Black	6.0mm x 4.0mm	1.0mm	160 PSI
PT0610-100Y	PT0610-500Y	PT0610-1000Y	Yellow
PT0610-100W	PT0610-500W	-	White
PT0610-100TC	PT0610-500TC	PT0610-1000TC	Transparent Clear
PT0610-100TB	PT0610-500TB	PT0610-1000TB	Transparent Blue
PT0610-100R	PT0610-500R	PT0610-1000R	Red
PT0610-100Q	PT0610-500Q	PT0610-1000Q	Orange
PT0610-100G	PT0610-500G	PT0610-1000G	Green
PT0610-100B	PT0610-500B	PT0610-1000B	Blue
