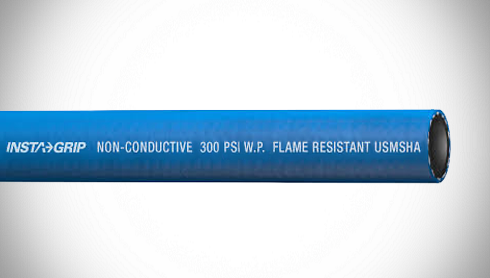

ContiTech Insta-Grip™ 300 Push-On Air / Multipurpose Hose - 0.375" (3/8") ID - 300 PSI - Blue - 20022681 Goodyear/Continental - 500ft

20022681 Insta-Grip™ by ContiTech | 300 Push-On Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 300 PSI | Blue | 500ft

$1,083.86 - $1,083.86

$1,083.86

$1,097.40

$1,097.40 - $1,097.40

$1,097.40

Continental ContiTech Insta-Grip™ 300 Push-on Air & Multipurpose Hose

For use with push-on fittings at working pressures of 300 psi. For low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly applications. Non-conductive, minimum electrical resistance, greater than 1 megohm per inch of hose length at 1000 volts DC. MSHA approved covers.

Package Quantity: 500 FT

Quantity

Specifications for Variant SKU: 20022681 ContiTech \| 500 \|
Brand:	Insta-Grip 300
Series:	Insta-Grip 300
Hose Color(s):	Blue
Internal Diameter:	0.375in
Outer Diameter:	0.69in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	MSHA 2G-IC-14C/33

SPECIFICATIONS

Application:	Low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly.	SAE Rating:	N/A
Other Ratings:	MSHA approved	Tube:	Silicone is not used in the manufacturing of this hose. Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement:	One braided high-strength synthetic yarn laid at the most effective angle for maximum strength and coupling holding ability.	Cover:	MSHA approved, weather, abrasion and oil-resistant synthetic rubber; ARPM Class B (Medium Oil Resistance).
Temperature Range:	-40°F to 210°F (-40°C to 99°C)	Fittings:	N/A
Branding:	Insta-Grip™ 1/4" 300 psi WP Flame-resistant USMSHA 2G-IC-14C/33 Made in USA Continental ContiTech

Black Part Number	Green Part Number	Gray Part Number	Red Part Number	Blue Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Bend Radius		Length	Weight		Black Order Code	Green Order Code	Gray Order Code	Red Order Code	Blue Order Code
Black Part Number	Green Part Number	Gray Part Number	Red Part Number	Blue Part Number	in.	mm	in.	mm	PSI	MPa	in.	mm	Length	lb./ft.	kg/m	Black Order Code	Green Order Code	Gray Order Code	Red Order Code	Blue Order Code
20022636	20022656	20022816	20022666	20022677	1/4"	6.4mm	0.54"	13.7mm	300 PSI	2.07 MPa	3"	64mm	500ft	0.10 lbs./ft.	0.15 kg/m	53527800800400	53527900800400	53529400800400	53528000800400	53528100800400
20022644	20022658	20022819	20022668	20022681	3/8"	9.5mm	0.69"	17.5mm	300 PSI	2.07 MPa	3"	76mm	500ft	0.14 lbs./ft.	0.21 kg/m	53527801200400	53527901200400	53529401200400	53528001200400	53528101200400
20022648	20022661	20022823	20022671	20022684	1/2"	12.7mm	0.81"	20.6mm	300 PSI	2.07 MPa	5"	127mm	500ft	0.17 lbs./ft.	0.25 kg/m	53527801600400	53527901600400	53529401600400	53528001600400	53528101600400
20022651	20022663*	20022825*	20022673	20022685	5/8"	15.9mm	0.93"	23.6mm	300 PSI	2.07 MPa	6"	152mm	500ft	0.20 lbs./ft.	0.30 kg/m	53527802000400	53527902000400	53529402000400	53528002000400	53528102000400
20022653	20022664	20022826	20022674	20022686	3/4"	19.1mm	1.07"	27.2mm	300 PSI	2.07 MPa	7"	178mm	500ft	0.26 lbs./ft.	0.39 kg/m	53527802400400	53527902400400	53529402400400	53528002400400	53528102400400

* 250ft Reels

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
