20022819 Insta-Grip™ by ContiTech | 300 Push-On Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 300 PSI | Gray | 500ft

Save $27.79 Save $27.79
Original price $1,083.86
Original price $1,083.86 - Original price $1,083.86
Original price $1,083.86
Current price $1,056.07
$1,056.07 - $1,056.07
Current price $1,056.07

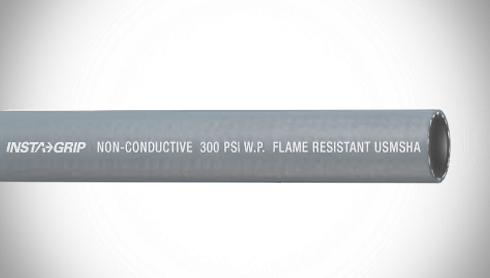

Continental ContiTech Insta-Grip™ 300 Push-on Air & Multipurpose Hose

For use with push-on fittings at working pressures of 300 psi. For low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly applications. Non-conductive, minimum electrical resistance, greater than 1 megohm per inch of hose length at 1000 volts DC. MSHA approved covers.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20022819 ContiTech | 500 |
Brand: Insta-Grip 300
Series: Insta-Grip 300
Hose Color(s): Gray
Internal Diameter: 0.375in
Outer Diameter: 0.69in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA 2G-IC-14C/33

SPECIFICATIONS

Application: Low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly. SAE Rating: N/A
Other Ratings: MSHA approved Tube: Silicone is not used in the manufacturing of this hose. Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: One braided high-strength synthetic yarn laid at the most effective angle for maximum strength and coupling holding ability. Cover: MSHA approved, weather, abrasion and oil-resistant synthetic rubber; ARPM Class B (Medium Oil Resistance).
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A
Branding: Insta-Grip™ 1/4" 300 psi WP Flame-resistant USMSHA 2G-IC-14C/33 Made in USA Continental ContiTech
Black
Part Number
Green
Part Number
Gray
Part Number
Red
Part Number
Blue
Part Number
Inside
Diameter
Nominal Outside
Diameter
Max. Working
Pressure
Bend
Radius
Length Weight Black
Order Code
Green
Order Code
Gray
Order Code
Red
Order Code
Blue
Order Code
in. mm in. mm PSI MPa in. mm lb./ft. kg/m
20022636 20022656 20022816 20022666 20022677 1/4" 6.4mm 0.54" 13.7mm 300 PSI 2.07 MPa 3" 64mm 500ft 0.10 lbs./ft. 0.15 kg/m 53527800800400 53527900800400 53529400800400 53528000800400 53528100800400
20022644 20022658 20022819 20022668 20022681 3/8" 9.5mm 0.69" 17.5mm 300 PSI 2.07 MPa 3" 76mm 500ft 0.14 lbs./ft. 0.21 kg/m 53527801200400 53527901200400 53529401200400 53528001200400 53528101200400
20022648 20022661 20022823 20022671 20022684 1/2" 12.7mm 0.81" 20.6mm 300 PSI 2.07 MPa 5" 127mm 500ft 0.17 lbs./ft. 0.25 kg/m 53527801600400 53527901600400 53529401600400 53528001600400 53528101600400
20022651 20022663* 20022825* 20022673 20022685 5/8" 15.9mm 0.93" 23.6mm 300 PSI 2.07 MPa 6" 152mm 500ft 0.20 lbs./ft. 0.30 kg/m 53527802000400 53527902000400 53529402000400 53528002000400 53528102000400
20022653 20022664 20022826 20022674 20022686 3/4" 19.1mm 1.07" 27.2mm 300 PSI 2.07 MPa 7" 178mm 500ft 0.26 lbs./ft. 0.39 kg/m 53527802400400 53527902400400 53529402400400 53528002400400 53528102400400

* 250ft Reels

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
