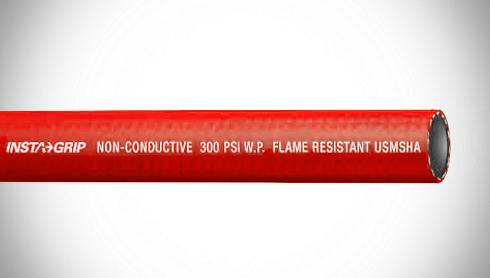

20022673 Insta-Grip™ by ContiTech | 300 Push-On Air / Multipurpose Hose | Continental | 0.625" (5/8") ID | 300 PSI | Red | 500ft

20022673 Insta-Grip™ by ContiTech | 300 Push-On Air / Multipurpose Hose | Continental | 0.625" (5/8") ID | 300 PSI | Red | 500ft

Minimum Order Quantity: 4 Units

$8,018.67 - $8,018.67
$8,018.67
$8,018.67 - $8,018.67
$8,018.67

Continental ContiTech Insta-Grip™ 300 Push-on Air & Multipurpose Hose

For use with push-on fittings at working pressures of 300 psi. For low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly applications. Non-conductive, minimum electrical resistance, greater than 1 megohm per inch of hose length at 1000 volts DC. MSHA approved covers.

FREE DOMESTIC SHIPPING!!!

Package Quantity: 2000 FT

Specifications for Variant SKU: 20022673 ContiTech | 2000 |
Brand: Insta-Grip 300
Series: Insta-Grip 300
Hose Color(s): Red
Internal Diameter: 0.625in
Outer Diameter: 0.93in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA 2G-IC-14C/33

SPECIFICATIONS

Application: Low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly. SAE Rating: N/A
Other Ratings: MSHA approved Tube: Silicone is not used in the manufacturing of this hose. Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: One braided high-strength synthetic yarn laid at the most effective angle for maximum strength and coupling holding ability. Cover: MSHA approved, weather, abrasion and oil-resistant synthetic rubber; ARPM Class B (Medium Oil Resistance).
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A
Branding: Insta-Grip™ 1/4" 300 psi WP Flame-resistant USMSHA 2G-IC-14C/33 Made in USA Continental ContiTech
Black
Part Number		 Green
Part Number		 Gray
Part Number		 Red
Part Number		 Blue
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Bend
Radius		 Length Weight Black
Order Code		 Green
Order Code		 Gray
Order Code		 Red
Order Code		 Blue
Order Code
in. mm in. mm PSI MPa in. mm lb./ft. kg/m
20022636 20022656 20022816 20022666 20022677 1/4" 6.4mm 0.54" 13.7mm 300 PSI 2.07 MPa 3" 64mm 500ft 0.10 lbs./ft. 0.15 kg/m 53527800800400 53527900800400 53529400800400 53528000800400 53528100800400
20022644 20022658 20022819 20022668 20022681 3/8" 9.5mm 0.69" 17.5mm 300 PSI 2.07 MPa 3" 76mm 500ft 0.14 lbs./ft. 0.21 kg/m 53527801200400 53527901200400 53529401200400 53528001200400 53528101200400
20022648 20022661 20022823 20022671 20022684 1/2" 12.7mm 0.81" 20.6mm 300 PSI 2.07 MPa 5" 127mm 500ft 0.17 lbs./ft. 0.25 kg/m 53527801600400 53527901600400 53529401600400 53528001600400 53528101600400
20022651 20022663* 20022825* 20022673 20022685 5/8" 15.9mm 0.93" 23.6mm 300 PSI 2.07 MPa 6" 152mm 500ft 0.20 lbs./ft. 0.30 kg/m 53527802000400 53527902000400 53529402000400 53528002000400 53528102000400
20022653 20022664 20022826 20022674 20022686 3/4" 19.1mm 1.07" 27.2mm 300 PSI 2.07 MPa 7" 178mm 500ft 0.26 lbs./ft. 0.39 kg/m 53527802400400 53527902400400 53529402400400 53528002400400 53528102400400

* 250ft Reels

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
