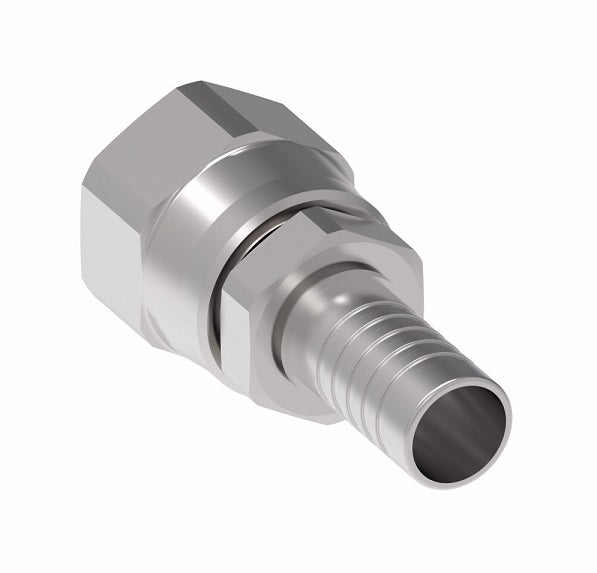

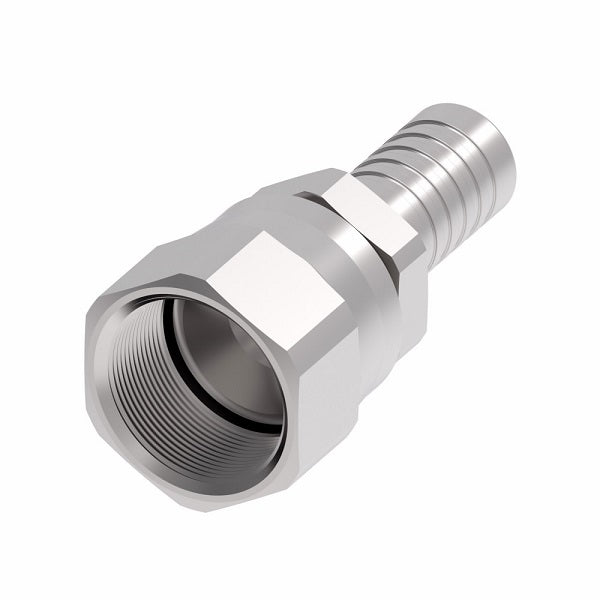

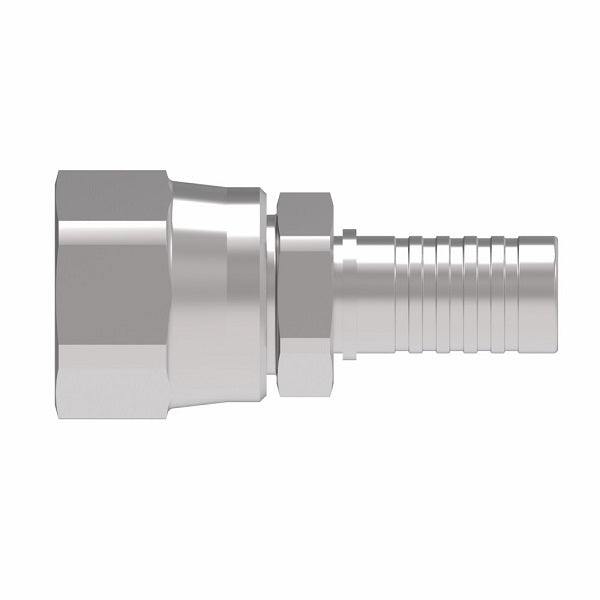

FC8779-1616-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel

FC8779-1616-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel

Name: FC8779-1616-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel
Brand: Danfoss/Eaton
SKU: FC8779-1616-333 Danfoss
Price: 252.88 USD
Availability: InStock

$252.88 - $252.88

$252.88

$252.88 - $252.88

$252.88

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female 37° JIC Swivel - Straight - Stainless Steel

FC Series

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC8779-1616-333 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Female JIC, 1in Hose Barb
Material(s):	Stainless Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	EØ	Hex 1	Hex 2
FC9779-0404-333	FC8779-0404-333	FC3596-04C	7/16-20	-04	1.55"	0.96"	0.12"	9/16"	7/16"
-	FC8779-0505-333	FC3443-04C	1/2-20	-05	1.50"	1.01"	0.19"	5/8"	1/2"
FC9779-0606-333	FC8779-0606-333	FC3443-05C	9/16-18	-06	1.60"	1.11"	0.25"	11/16"	9/16"
FC9779-0808-333	FC8779-0808-333	FC3596-08C	3/4-16	-08	2.10"	1.21"	0.34"	7/8"	11/16"
FC9779-1010-333	FC8779-1010-333	FC3443-08C	7/8-14	-10	2.21"	1.32"	0.44"	1"	13/16"
FC9779-1212-333	FC8779-1212-333	FC3596-12C	1-5/16-12	-12	2.29"	1.41"	0.56"	1-1/4"	1"
FC9779-1616-333	FC8779-1616-333	FC3596-16C	1-5/16-12	-16"	2.52"	1.64"	0.80"	1-1/2"	1-1/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
