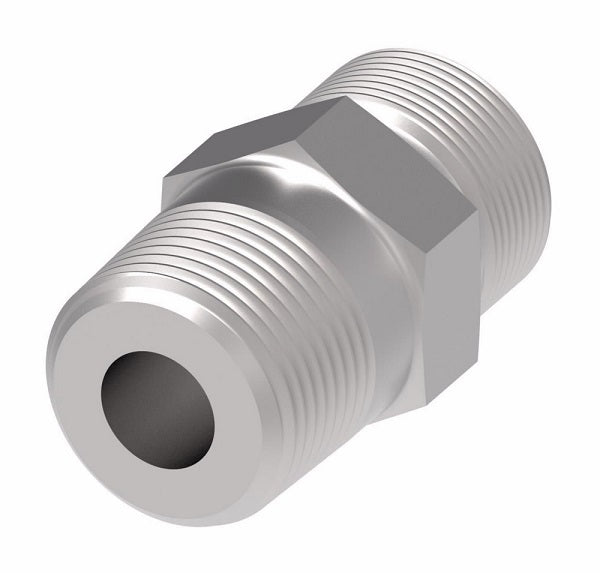

FF2031T0602S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -06 Male O-Ring Face Seal x -02 Male NPTF | Steel

Original price $14.94 - Original price $14.94
Original price
$14.94
$14.94 - $14.94
Current price $14.94

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2031T0602S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Face Seal, 1/8in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 520102
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number
Tube OD Thread T1 Thread T2 A Hex 1

FF2031T0402S 0.25" 9/16-18 1/8-27 1.03" 0.62"
FF2031T0404S 0.25" 9/16-18 1/4-18 1.24" 0.62"
FF2031T0406S 0.25" 9/16-18 3/8-18 1.24" 0.75"
FF2031T0408S 0.25" 9/16-18 1/2-14 1.49" 0.88"
FF2031T0602S 0.38" 11/16-16 1/8-27 1.12" 0.75"
FF2031T0604S 0.38" 11/16-16 1/4-18 1.30" 0.75"
FF2031T0606S 0.38" 11/16-16 3/8-18 1.30" 0.75"
FF2031T0608S 0.38" 11/16-16 1/2-14 1.55" 0.88"
FF2031T0804S/a> 0.50" 13/16-16 1/4-18 1.36" 0.88"
FF2031T0806S 0.50" 13/16-16 3/8-18 1.36" 0.88"
FF2031T0808S 0.50" 13/16-16 1/2-14 1.61" 0.88"
FF2031T0812S 0.50" 13/16-16 3/4-14 1.68" 1.06"
FF2031T1008S 0.63" 1-14 1/2-14 1.72" 1.06"
FF2031T1012S 0.63" 1-14 3/4-14 1.78" 1.06"
FF2031T1208S 0.75" 1-3/16-12 1/2-14 1.84" 1.25"
FF2031T1212S 0.75" 1-3/16-12 3/4-14 1.84" 1.25"
FF2031T1216S 0.75" 1-3/16-12 1-11-1/2 2.03" 1.38"
FF2031T1612S 1.00" 1-7/16-12 3/4-14 1.86" 1.50"
FF2031T1616S 1.00" 1-7/16-12 1-11-1/2 2.05" 1.50"
FF2031T1620S 1.00" 1-7/16-12 1-1/4-11-1/2 2.16" 1.69"
FF2031T2016S 1.25" 1-11/16-12 1-11-1/2 2.13" 1.75"
FF2031T2020S 1.25" 1-11/16-12 1-1/4-11-1/2 2.16" 1.75"
FF2031T2424S 1.50" 2-12 1-1/2-11-1/2 2.26" 2.12"
