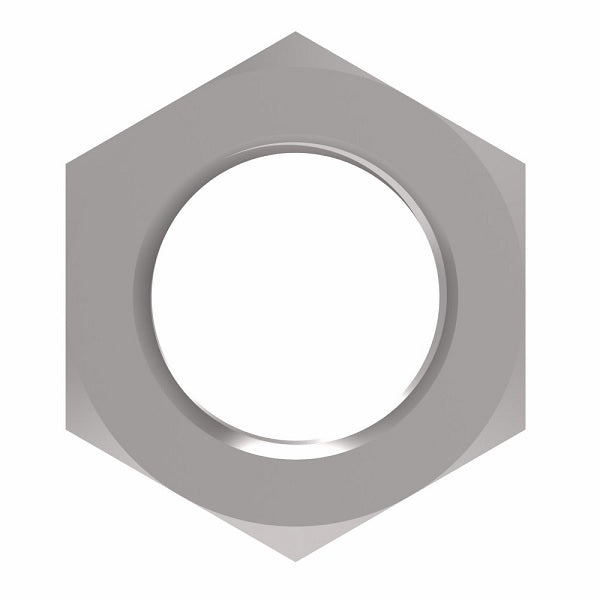

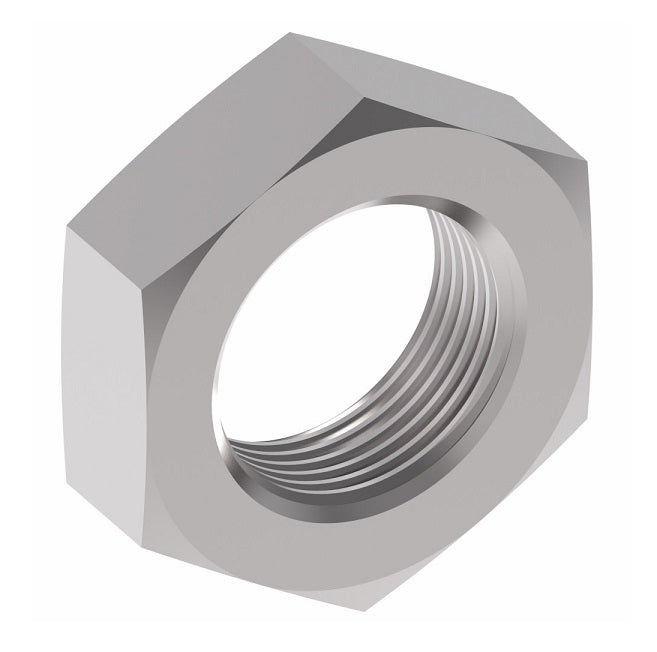

FF9768-12S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -12 Size | Steel

Name: FF9768-12S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -12 Size | Steel
Brand: Danfoss/Eaton
SKU: FF9768-12S Danfoss
Price: 3.04 USD
Availability: InStock

$3.04 - $3.04

$3.04

$3.04 - $3.04

$3.04

Aeroquip® by Danfoss
O-Ring Face Seal (ORS) Bulkhead Nut

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF9768-12S Danfoss
Shape (Orientation):	No Orientation
Material(s):	Steel

Specifications:
Ref. SAE 520118
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Brass Part Number	Tube OD	Thread T1	A	B
FF9768-04S	-	0.25"	9/16-18	0.81"	0.27"
FF9768-06S	-	0.38"	11/16-16	1.00"	0.31"
FF9768-08S	-	0.50"	13/16-16	1.12"	0.35"
FF9768-10S	-	0.63"	1-14	1.31"	0.41"
FF9768-12S	FF9768-12B	0.75"	1-3/16-12	1.50"	0.41"
FF9768-16S	-	1.00"	1-7/16-12	1.75"	0.41"
FF9768-20S	-	1.25"	1-11/16-12	2.00"	0.41"
FF9768-24S	-	1.50"	2-12	2.38"	0.41"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
