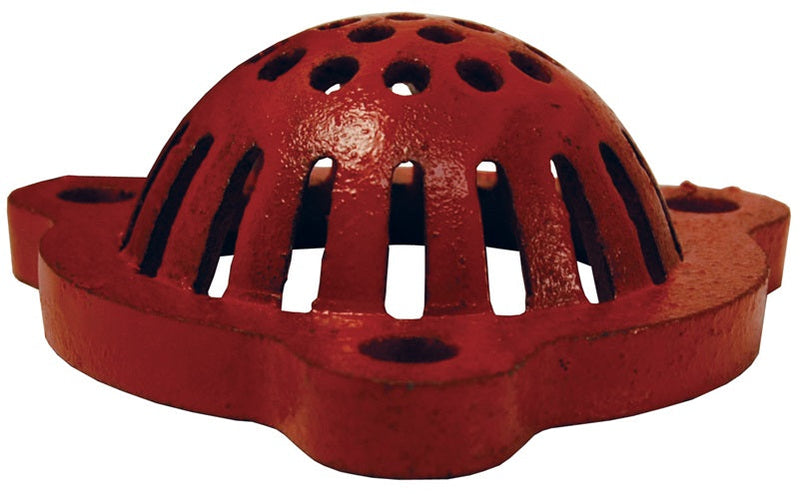

FVS40 by Dixon Valve | Foot Valve Strainer | For Use on 4" Foot Valve (DFVS40) | Painted Cast Iron

FVS40 by Dixon Valve | Foot Valve Strainer | For Use on 4" Foot Valve (DFVS40) | Painted Cast Iron

Save $19.33 Save $19.33
$48.33
$48.33 - $48.33
$48.33
$29.00
$29.00 - $29.00
$29.00

Dixon Valve
Foot Valve Replacement Part: Strainer

For use on water suction hose to prevent pump from losing its prime.
Specifications for Variant SKU: FVS40 Dixon
Material(s): Cast Iron
Safety Notes:
  • Must be installed in the vertical position.
  • For water service only.
  • Not for compressed air or other compressible gases.
Material:
  • Painted Cast Iron
Complete Assembly Replacement Parts

Foot Valve
Part Number		 Size Strainer
Part Number		 Flapper Assembly
Part Number		 Flapper Gasket
Part Number		 Seat Plate
Part Number
DFVS20 1-1/2" FVS20 FVFA20 FVL20 FVSP20
DFVS25 2" FVS25 FVFA25 FVL25 FVSP25
DFVS30 2-1/2" FVS30 FVFA30 FVL30 FVSP30
DFVS35 3" FVS35 FVFA35 FVL35 FVSP35
DFVS40 4" FVS40 FVFA40 FVL40 FVSP40
DFVS60 6" FVS60 FVFA60 FVL60 FVSP60
DFVS80 8" FVS80 FVFA80 FVL80 FVSP80

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
