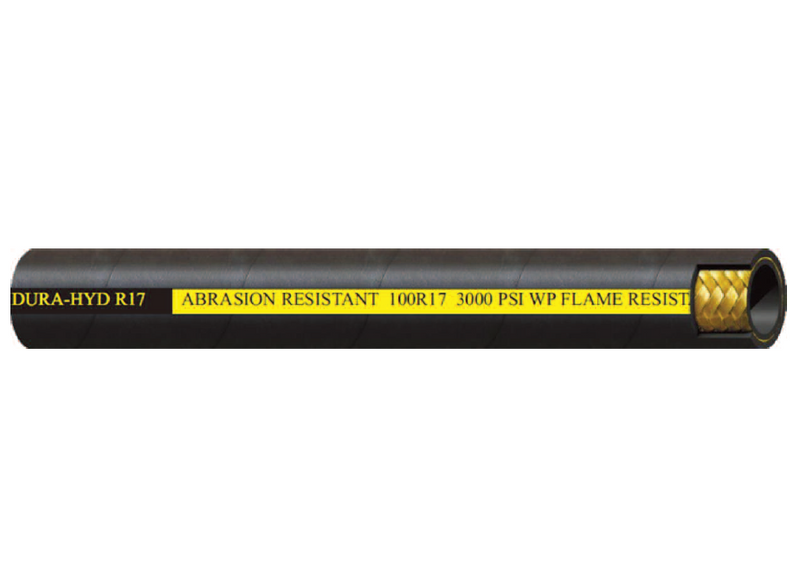

1/2" WDH17 Couplamatic Import DURA-HYD Wrapped Cover Abrasion Resistant One or Two Wire Hydraulic Hose (SAE 100R17) - 1/2" ID - 350ft

1/2" WDH17 by Couplamatic | Import DURA-HYD Wrapped Cover Abrasion Resistant | One or Two Wire Hydraulic Hose | SAE 100R17 | 1/2" ID | 350ft

Save $119.47

$1,075.20

$1,075.20 - $1,075.20

$1,075.20

$955.73

$955.73 - $955.73

$955.73

Couplamatic Systems Inc.
One or Two Wire Braid - WWDH17 DURA-HYD Abrasion Resistant Wrapped Cover Import Hydraulic Hose (SAE 100R17)

Package Quantity: 350 FT

Quantity

Specifications for Variant SKU: 1/2" WDH17 Couplamatic \| 350 \|
Series:	WDH17 Series
Hose Color(s):	Black
Dash Size:	-8
Internal Diameter:	0.50in
Outer Diameter:	0.81in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R17
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series \| GW Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R17
Cover:	Flame Resistant, Extra Abrasion Resistant, Yellow layline, MSHA	Reinforcement:	One or Two Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" WDH17	1/4"	0.535"	3,000 lbs.	12,000 lbs.	2"	16 lbs.	500ft
3/8" WDH17	3/8"	0.690"	3,000 lbs.	12,000 lbs.	2.5"	23 lbs.	500ft
1/2" WDH17	1/2"	0.810"	3,000 lbs.	12,000 lbs.	3.5"	29 lbs.	350ft
5/8" WDH17	5/8"	0.950"	3,000 lbs.	12,000 lbs.	5"	38 lbs.	250ft
3/4" WDH17	3/4"	1.100"	3,000 lbs.	12,000 lbs.	5"	55 lbs.	250ft
1" WDH17	1"	1.410"	3,000 lbs.	12,000 lbs.	6"	82 lbs.	200ft

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
