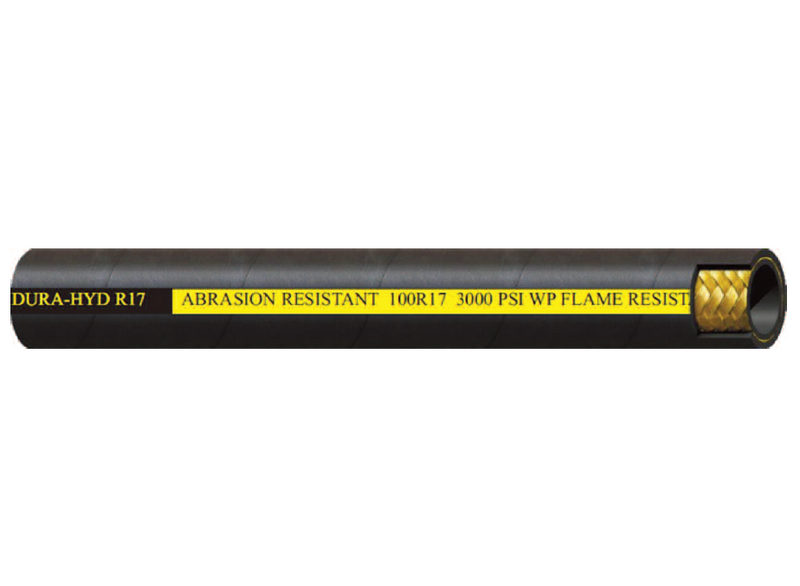

3/8" WDH17 Couplamatic Import DURA-HYD Wrapped Cover Abrasion Resistant One or Two Wire Hydraulic Hose (SAE 100R17) - 3/8" ID - 500ft

3/8" WDH17 by Couplamatic | Import DURA-HYD Wrapped Cover Abrasion Resistant | One or Two Wire Hydraulic Hose | SAE 100R17 | 3/8" ID | 500ft

Save $128.67 Save $128.67
$1,158.00
$1,158.00 - $1,158.00
$1,158.00
$1,029.33
$1,029.33 - $1,029.33
$1,029.33

Couplamatic Systems Inc.
One or Two Wire Braid - WWDH17 DURA-HYD Abrasion Resistant Wrapped Cover Import Hydraulic Hose (SAE 100R17)

Package Quantity: 500 FT

Specifications for Variant SKU: 3/8" WDH17 Couplamatic | 500 |
Series: WDH17 Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.375in
Outer Diameter: 0.69in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R17
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series  |   GW Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R17
Cover: Flame Resistant, Extra Abrasion Resistant, Yellow layline, MSHA Reinforcement: One or Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" WDH17 1/4" 0.535" 3,000 lbs. 12,000 lbs. 2" 16 lbs. 500ft
3/8" WDH17 3/8" 0.690" 3,000 lbs. 12,000 lbs. 2.5" 23 lbs. 500ft
1/2" WDH17 1/2" 0.810" 3,000 lbs. 12,000 lbs. 3.5" 29 lbs. 350ft
5/8" WDH17 5/8" 0.950" 3,000 lbs. 12,000 lbs. 5" 38 lbs. 250ft
3/4" WDH17 3/4" 1.100" 3,000 lbs. 12,000 lbs. 5" 55 lbs. 250ft
1" WDH17 1" 1.410" 3,000 lbs. 12,000 lbs. 6" 82 lbs. 200ft
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
