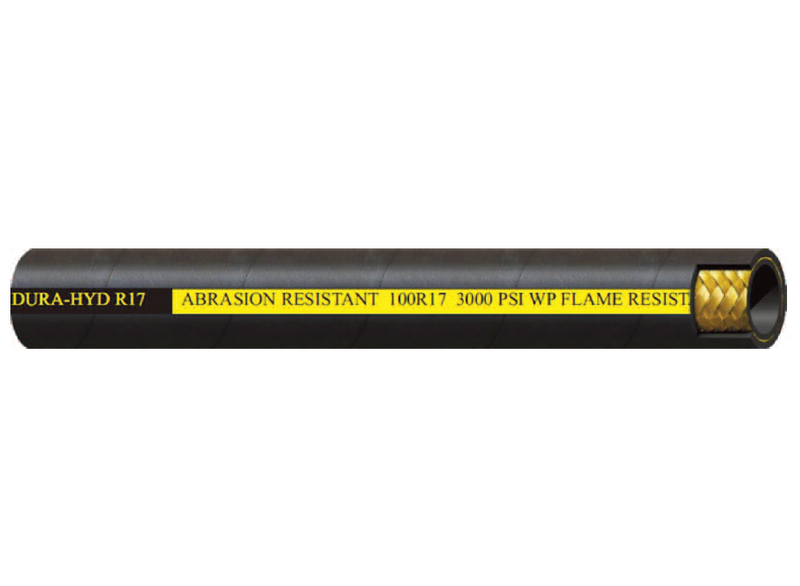

1" WDH17 Couplamatic Import DURA-HYD Wrapped Cover Abrasion Resistant One or Two Wire Hydraulic Hose (SAE 100R17) - 1" ID - 200ft

1" WDH17 by Couplamatic | Import DURA-HYD Wrapped Cover Abrasion Resistant | One or Two Wire Hydraulic Hose | SAE 100R17 | 1" ID | 200ft

Save $185.33 Save $185.33
$1,668.00
$1,668.00 - $1,668.00
$1,668.00
$1,482.67
$1,482.67 - $1,482.67
$1,482.67

Couplamatic Systems Inc.
One or Two Wire Braid - WWDH17 DURA-HYD Abrasion Resistant Wrapped Cover Import Hydraulic Hose (SAE 100R17)

Package Quantity: 200 FT

Specifications for Variant SKU: 1" WDH17 Couplamatic | 200 |
Series: WDH17 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1in
Outer Diameter: 1.41in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R17
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series  |   GW Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R17
Cover: Flame Resistant, Extra Abrasion Resistant, Yellow layline, MSHA Reinforcement: One or Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" WDH17 1/4" 0.535" 3,000 lbs. 12,000 lbs. 2" 16 lbs. 500ft
3/8" WDH17 3/8" 0.690" 3,000 lbs. 12,000 lbs. 2.5" 23 lbs. 500ft
1/2" WDH17 1/2" 0.810" 3,000 lbs. 12,000 lbs. 3.5" 29 lbs. 350ft
5/8" WDH17 5/8" 0.950" 3,000 lbs. 12,000 lbs. 5" 38 lbs. 250ft
3/4" WDH17 3/4" 1.100" 3,000 lbs. 12,000 lbs. 5" 55 lbs. 250ft
1" WDH17 1" 1.410" 3,000 lbs. 12,000 lbs. 6" 82 lbs. 200ft
