1/4" WDH17 Couplamatic Import DURA-HYD Wrapped Cover Abrasion Resistant One or Two Wire Hydraulic Hose (SAE 100R17) - 1/4" ID - 500ft

1/4" WDH17 by Couplamatic | Import DURA-HYD Wrapped Cover Abrasion Resistant | One or Two Wire Hydraulic Hose | SAE 100R17 | 1/4" ID | 500ft

Save $634.67

$1,586.67

$1,586.67 - $1,586.67

$1,586.67

$952.00

$952.00 - $952.00

$952.00

Couplamatic Systems Inc.
One or Two Wire Braid - WWDH17 DURA-HYD Abrasion Resistant Wrapped Cover Import Hydraulic Hose (SAE 100R17)

Package Quantity: 500 FT

Specifications for Variant SKU: 1/4" WDH17 Couplamatic \| 500 \|
Series:	WDH17 Series
Hose Color(s):	Black
Dash Size:	-4
Internal Diameter:	0.25in
Outer Diameter:	0.535in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R17
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series \| GW Series

SAE 100R17 — Wrapped Cover, Abrasion Resistant

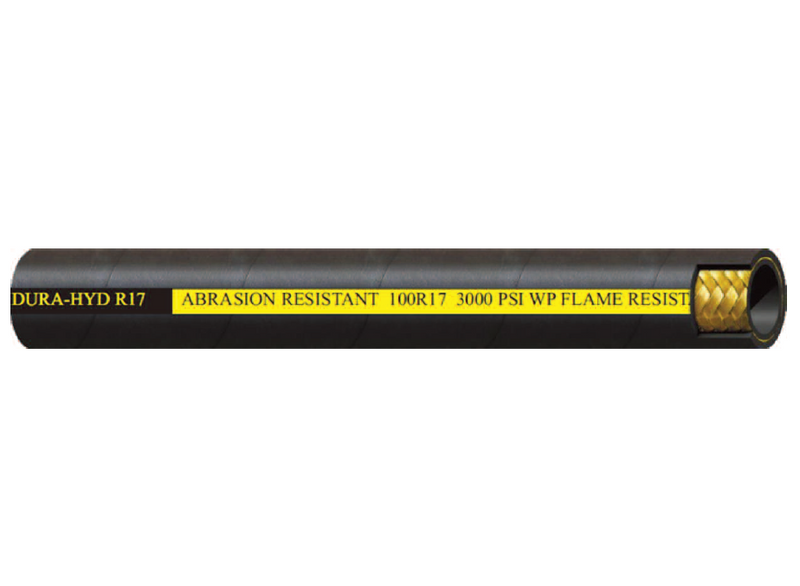

WDH17 Dura-Hyd Wrapped Cover Hydraulic Hose

SAE 100R17 hose with an extra abrasion resistant wrapped cover and yellow layline, holding 3,000 PSI constant working pressure from 1/4" through 1".

1

What is this hose used for?

High Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R17

Cover

Flame Resistant, Extra Abrasion Resistant, Yellow layline, MSHA

Reinforcement

One or Two Wire Braids

Temperature

-40°F to +212°F (-40°C to +100°C)

3

What are the main product features?

3000 PSI constant working pressure — same rating across every size.
Wrapped cover — extra abrasion resistance for equipment that drags and rubs.
Yellow layline — identifies the hose clearly on the machine.
One or two wire braids — reinforcement varies by size.
Flame resistant, MSHA — approved for mining service.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" WDH17	1/4"	0.535"	3,000 lbs.	12,000 lbs.	2"	16 lbs.	500ft
3/8" WDH17	3/8"	0.690"	3,000 lbs.	12,000 lbs.	2.5"	23 lbs.	500ft
1/2" WDH17	1/2"	0.810"	3,000 lbs.	12,000 lbs.	3.5"	29 lbs.	350ft
5/8" WDH17	5/8"	0.950"	3,000 lbs.	12,000 lbs.	5"	38 lbs.	250ft
3/4" WDH17	3/4"	1.100"	3,000 lbs.	12,000 lbs.	5"	55 lbs.	250ft
1" WDH17	1"	1.410"	3,000 lbs.	12,000 lbs.	6"	82 lbs.	200ft

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
