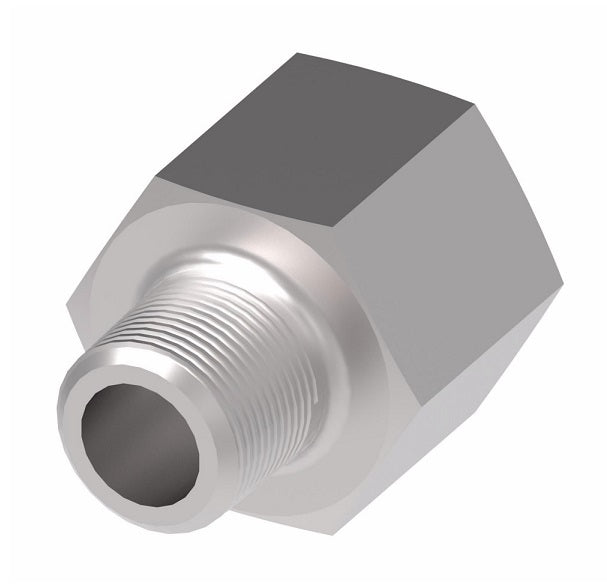

2040-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -12 Male NPTF x -12 Female NPTF | Steel
2040-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -12 Male NPTF x -12 Female NPTF | Steel
2040-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -12 Male NPTF x -12 Female NPTF | Steel
2040-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -12 Male NPTF x -12 Female NPTF | Steel

2040-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -12 Male NPTF x -12 Female NPTF | Steel

$23.80 - $23.80
$23.80
$23.80 - $23.80
$23.80

Aeroquip® by Danfoss
External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2040-12-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 3/4in Female NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140139
Steel
Part Number 		Thread P1 Thread P2 A
2040-2-2S 1/8-27 1/8-27 1.04"
2040-2-4S 1/8-27 1/4-18 1.21"
2040-2-8S 1/8-27 1/2-14 1.50"
2040-4-4S 1/4-18 1/4-18 1.39"
2040-4-6S 1/4-18 3/8-18 1.44"
2040-4-8S 1/4-18 1/2-14 1.68"
2040-4-12S 1/4-18 3/4-14 1.74"
2040-6-6S 3/8-18 3/8-18 1.44"
2040-6-8S 3/8-18 1/2-14 1.68"
2040-8-8S 1/2-14 1/2-14 1.87"
2040-8-12S 1/2-14 3/4-14 1.93"
2040-8-16S 1/2-14 1-11-1/2 2.09"
2040-12-12S 3/4-14 3/4-14 1.93"
2040-12-16S 3/4-14 1-11-1/2 2.18"
2040-16-16S 1-11-1/2 1-11-1/2 2.37"
2040-16-20S 1-11-1/2 1-1/4-11-1/2 2.46"
2040-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 2.49"
2040-20-24S 1-1/4-11-1/2 1-1/2-11-1/2 2.50"
2040-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 2.53"
2040-24-32S 1-1/2-11-1/2 2-11-1/2 -
2040-32-32S 2-11-1/2 2-11-1/2 2.66"
