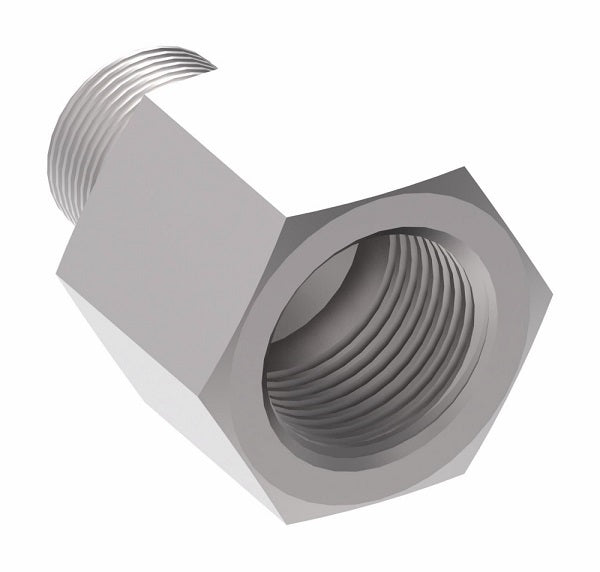

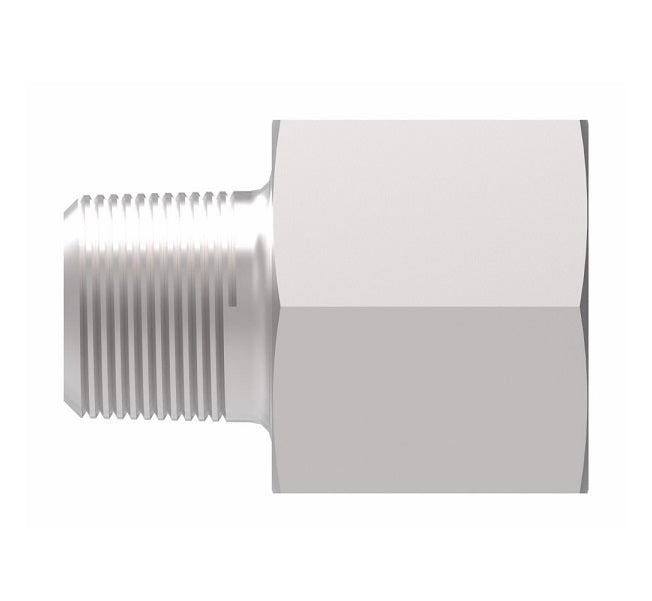

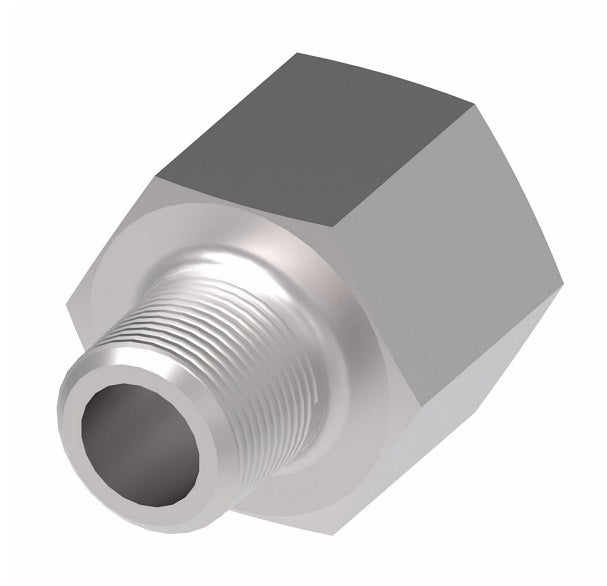

2040-8-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -08 Male NPTF x -12 Female NPTF | Steel

2040-8-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -08 Male NPTF x -12 Female NPTF | Steel

Name: 2040-8-12S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -08 Male NPTF x -12 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2040-8-12S Danfoss
Price: 11.51 USD
Availability: InStock

$11.51 - $11.51

$11.51

$11.51 - $11.51

$11.51

Aeroquip® by Danfoss
External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2040-8-12S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPTF, 3/4in Female NPTF
Material(s):	Steel

Specifications:
Ref. SAE 140139


Steel Part Number	Thread P1	Thread P2	A
2040-2-2S	1/8-27	1/8-27	1.04"
2040-2-4S	1/8-27	1/4-18	1.21"
2040-2-8S	1/8-27	1/2-14	1.50"
2040-4-4S	1/4-18	1/4-18	1.39"
2040-4-6S	1/4-18	3/8-18	1.44"
2040-4-8S	1/4-18	1/2-14	1.68"
2040-4-12S	1/4-18	3/4-14	1.74"
2040-6-6S	3/8-18	3/8-18	1.44"
2040-6-8S	3/8-18	1/2-14	1.68"
2040-8-8S	1/2-14	1/2-14	1.87"
2040-8-12S	1/2-14	3/4-14	1.93"
2040-8-16S	1/2-14	1-11-1/2	2.09"
2040-12-12S	3/4-14	3/4-14	1.93"
2040-12-16S	3/4-14	1-11-1/2	2.18"
2040-16-16S	1-11-1/2	1-11-1/2	2.37"
2040-16-20S	1-11-1/2	1-1/4-11-1/2	2.46"
2040-20-20S	1-1/4-11-1/2	1-1/4-11-1/2	2.49"
2040-20-24S	1-1/4-11-1/2	1-1/2-11-1/2	2.50"
2040-24-24S	1-1/2-11-1/2	1-1/2-11-1/2	2.53"
2040-24-32S	1-1/2-11-1/2	2-11-1/2	-
2040-32-32S	2-11-1/2	2-11-1/2	2.66"
