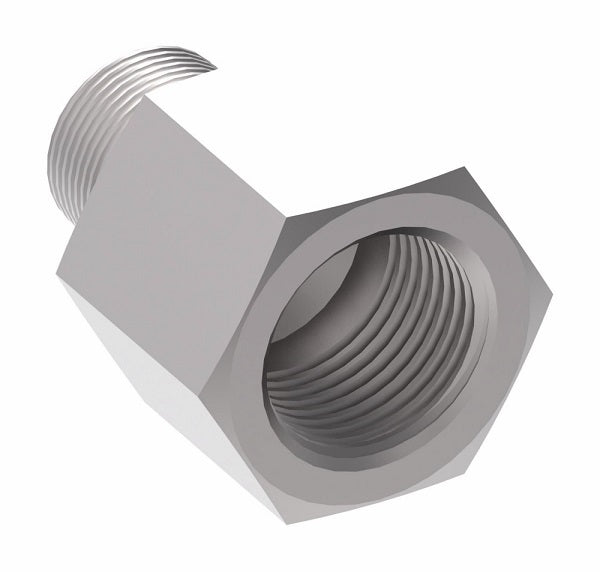

2040-20-20S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -20 Male NPTF x -20 Female NPTF | Steel
2040-20-20S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -20 Male NPTF x -20 Female NPTF | Steel
2040-20-20S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -20 Male NPTF x -20 Female NPTF | Steel
2040-20-20S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -20 Male NPTF x -20 Female NPTF | Steel

2040-20-20S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -20 Male NPTF x -20 Female NPTF | Steel

$27.78 - $27.78
$27.78
$27.78 - $27.78
$27.78

Aeroquip® by Danfoss
External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2040-20-20S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPTF, 1-1/4in Female NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140139
Steel
Part Number 		Thread P1 Thread P2 A
2040-2-2S 1/8-27 1/8-27 1.04"
2040-2-4S 1/8-27 1/4-18 1.21"
2040-2-8S 1/8-27 1/2-14 1.50"
2040-4-4S 1/4-18 1/4-18 1.39"
2040-4-6S 1/4-18 3/8-18 1.44"
2040-4-8S 1/4-18 1/2-14 1.68"
2040-4-12S 1/4-18 3/4-14 1.74"
2040-6-6S 3/8-18 3/8-18 1.44"
2040-6-8S 3/8-18 1/2-14 1.68"
2040-8-8S 1/2-14 1/2-14 1.87"
2040-8-12S 1/2-14 3/4-14 1.93"
2040-8-16S 1/2-14 1-11-1/2 2.09"
2040-12-12S 3/4-14 3/4-14 1.93"
2040-12-16S 3/4-14 1-11-1/2 2.18"
2040-16-16S 1-11-1/2 1-11-1/2 2.37"
2040-16-20S 1-11-1/2 1-1/4-11-1/2 2.46"
2040-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 2.49"
2040-20-24S 1-1/4-11-1/2 1-1/2-11-1/2 2.50"
2040-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 2.53"
2040-24-32S 1-1/2-11-1/2 2-11-1/2 -
2040-32-32S 2-11-1/2 2-11-1/2 2.66"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
