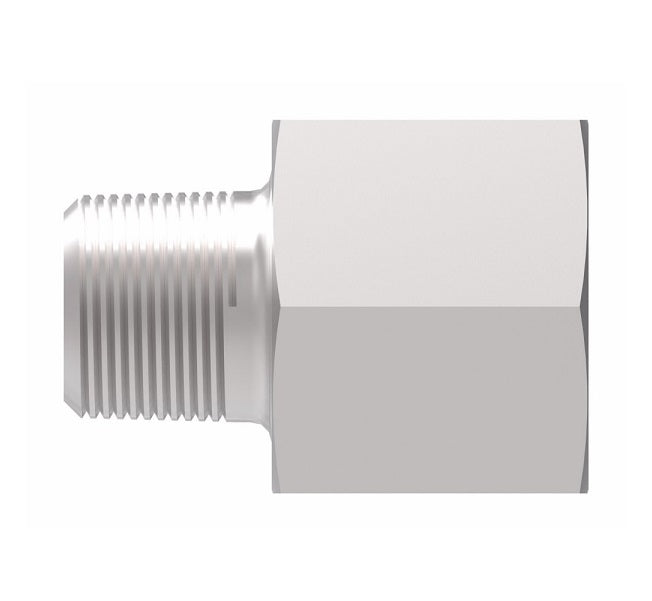

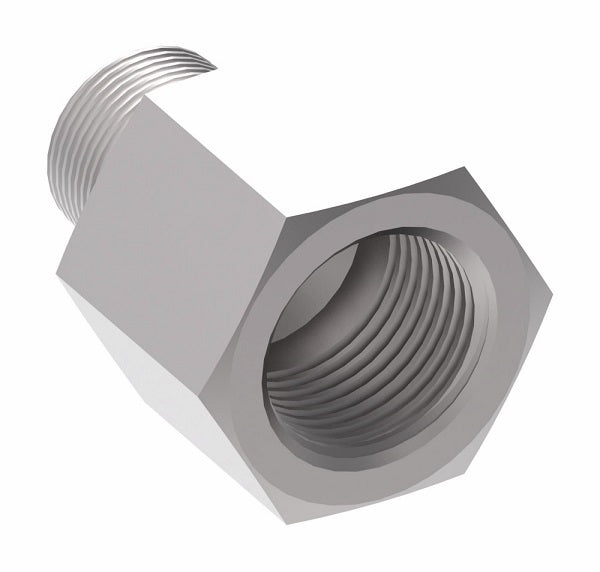

2040-4-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -04 Male NPTF x -08 Female NPTF | Steel

2040-4-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -04 Male NPTF x -08 Female NPTF | Steel

Name: 2040-4-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Adapter | -04 Male NPTF x -08 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2040-4-8S Danfoss
Price: 8.17 USD
Availability: InStock

$8.17 - $8.17

$8.17

$8.17 - $8.17

$8.17

Aeroquip® by Danfoss
External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2040-4-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 1/2in Female NPTF
Material(s):	Steel

Specifications:
Ref. SAE 140139


Steel Part Number	Thread P1	Thread P2	A
2040-2-2S	1/8-27	1/8-27	1.04"
2040-2-4S	1/8-27	1/4-18	1.21"
2040-2-8S	1/8-27	1/2-14	1.50"
2040-4-4S	1/4-18	1/4-18	1.39"
2040-4-6S	1/4-18	3/8-18	1.44"
2040-4-8S	1/4-18	1/2-14	1.68"
2040-4-12S	1/4-18	3/4-14	1.74"
2040-6-6S	3/8-18	3/8-18	1.44"
2040-6-8S	3/8-18	1/2-14	1.68"
2040-8-8S	1/2-14	1/2-14	1.87"
2040-8-12S	1/2-14	3/4-14	1.93"
2040-8-16S	1/2-14	1-11-1/2	2.09"
2040-12-12S	3/4-14	3/4-14	1.93"
2040-12-16S	3/4-14	1-11-1/2	2.18"
2040-16-16S	1-11-1/2	1-11-1/2	2.37"
2040-16-20S	1-11-1/2	1-1/4-11-1/2	2.46"
2040-20-20S	1-1/4-11-1/2	1-1/4-11-1/2	2.49"
2040-20-24S	1-1/4-11-1/2	1-1/2-11-1/2	2.50"
2040-24-24S	1-1/2-11-1/2	1-1/2-11-1/2	2.53"
2040-24-32S	1-1/2-11-1/2	2-11-1/2	-
2040-32-32S	2-11-1/2	2-11-1/2	2.66"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
