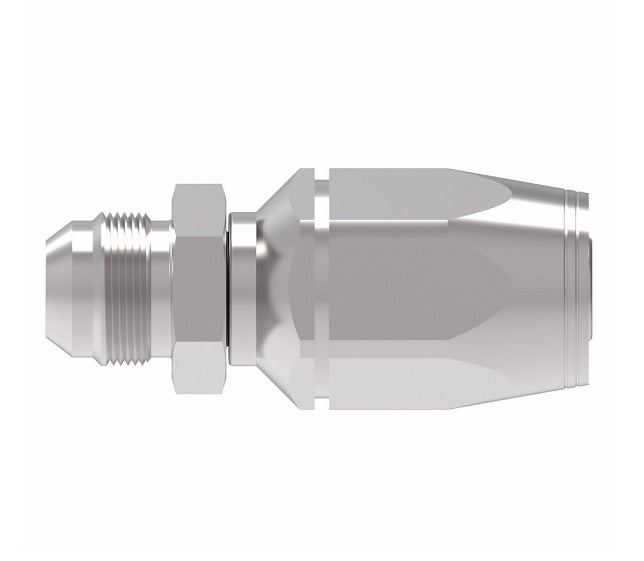

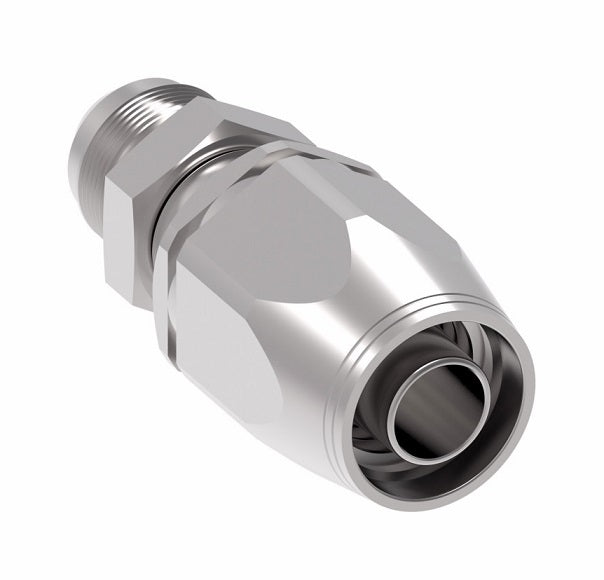

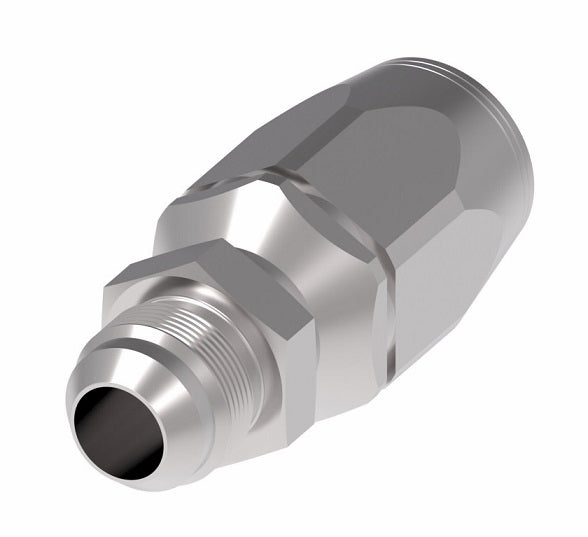

2RA6MJ6 Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Male 37° JIC Flare x -06 Reusable Hose End | Steel

Original price $46.62 - Original price $46.62
Original price
$46.62
$46.62 - $46.62
Current price $46.62

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Male 37° JIC Flare - Straight


Specifications for Variant SKU: 2RA6MJ6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male JIC, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number
Nipple Assembly
Part Number
Reusable Socket
Part Number
Thread Size Hose Size A D E&Oslash
2RA4MJ4 4203-4-4S 2RA4 7/16-20 -04 2.49" 1.32" 0.17"
2RA6MJ6 4203-6-6S 2RA6 9/16-18 -06 2.75" 1.41" 0.31"
2RA8MJ8 4203-8-8S 2RA8 3/4-16 -08 2.99" 1.48" 0.39"
2RA12MJ12 4203-12S 2RA12 1-1/16-12 -12 3.72" 1.85" 0.61"
2RA16MJ16 4203-16S 2RA16 1-5/16-12 -16 4.38" 2.33" 0.82"
