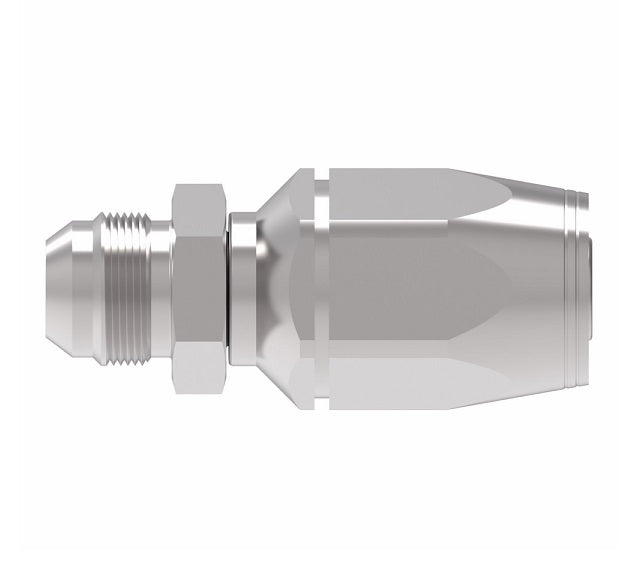

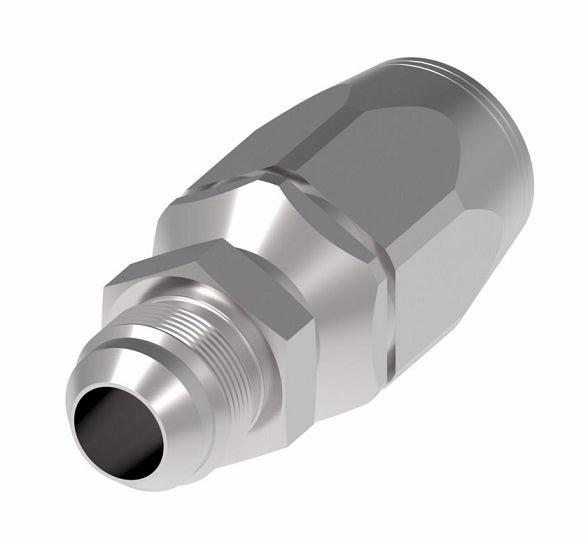

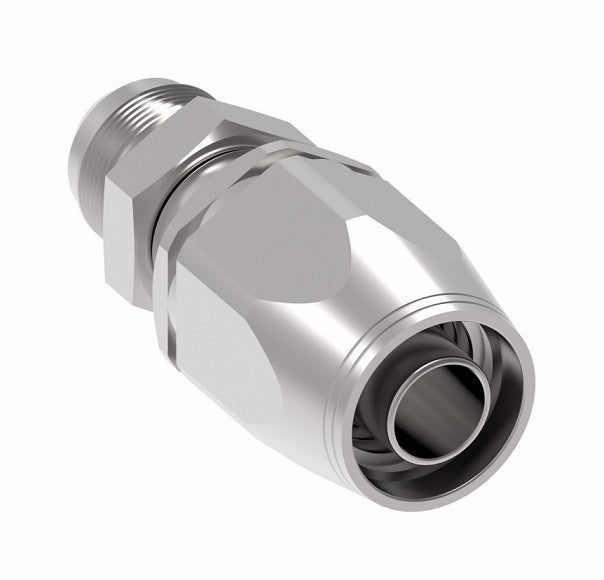

2RA8MJ8 Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel
2RA8MJ8 Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel
2RA8MJ8 Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel
2RA8MJ8 Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel

2RA8MJ8 Weatherhead by Danfoss | Male 37° JIC Flare Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel

$50.86 - $50.86
$50.86
$50.86 - $50.86
$50.86

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Male 37° JIC Flare - Straight
Specifications for Variant SKU: 2RA8MJ8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 1/2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
2RA4MJ4 4203-4-4S 2RA4 7/16-20 -04 2.49" 1.32" 0.17"
2RA6MJ6 4203-6-6S 2RA6 9/16-18 -06 2.75" 1.41" 0.31"
2RA8MJ8 4203-8-8S 2RA8 3/4-16 -08 2.99" 1.48" 0.39"
2RA12MJ12 4203-12S 2RA12 1-1/16-12 -12 3.72" 1.85" 0.61"
2RA16MJ16 4203-16S 2RA16 1-5/16-12 -16 4.38" 2.33" 0.82"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
