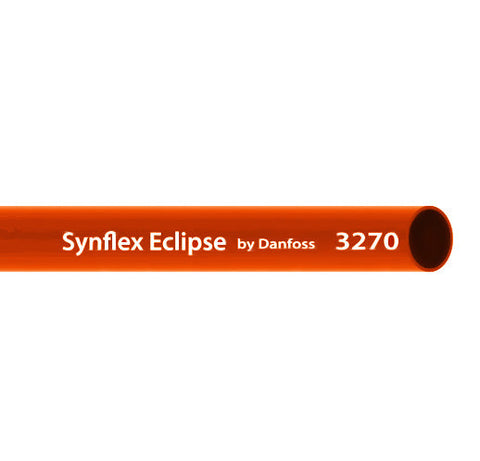

3270-06134 Synflex Solstice by Danfoss | 3270 Eclipse | Type B Truck Air Brake Tubing | .375" Tube OD | 0.25" Tube ID | 0.06" Wall Thickness | Orange | 3000 ft Length (Non-Continuous)

3270-06134 Synflex Solstice by Danfoss | 3270 Eclipse | Type B Truck Air Brake Tubing | .375" Tube OD | 0.25" Tube ID | 0.06" Wall Thickness | Orange | 3000 ft Length (Non-Continuous)

$4,787.99

Synflex by Danfoss
3270 Eclipse Series | Type B Truck Air Brake Tubing

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 3000 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3270-06134 Danfoss | 3000 |
Brand: Aeroquip, Synflex Eclipse
Series: Air Brake Tubing
Hose Color(s): Orange
Internal Diameter: 0.25in
Outer Diameter: 0.375in
Tubing Construction: Nylon
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE J1131, SAE J2494-2, SAE J844
Hose Properties:
Application: Truck air brake systems.
Trailer air brake systems.
Auxiliary air systems.
Not for use with fuel.		 SAE Rating: Meets: SAE J844 Type B, SAE J1131, SAE J2494-3, DOT-FMVSS 106
Other Ratings: N/A Tube: 100% Polyamide
Reinforcement: Polyester Yarn Cover: N/A
Temperature Range: -65°F to +200°F
(-54°C to +93°C)
Features: Superior abrasion resistance.
Ease of cutting.
Enhanced flexibility and extension.
Flow performance.
UV stabilized, thermoformable.
Part
Number		 Tube
Size 		Tube
OD		 Tube
ID		 Wall
Thickness		 Min. Burst
Pressure		 Min. Bend
Radius		 Weight Color Package
Length
mm in mm in mm in bar psi mm in lbs/100ft ft
3270-06104 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Black 3,000 ft
(6 Reels of 500ft)
3270-06124 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Red 3,000 ft
(6 Reels of 500ft)
3270-06134 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Orange 3,000 ft
(6 Reels of 500ft)
3270-06144 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Yellow 3,000 ft
(6 Reels of 500ft)
3270-06154 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Green 3,000 ft
(6 Reels of 500ft)
3270-06164 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Blue 3,000 ft
(6 Reels of 500ft)
3270-08104 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Black 1,500 ft
(3 Reels of 500ft)
3270-08124 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Red 1,500 ft
(3 Reels of 500ft)
3270-08144 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Yellow 1,500 ft
(3 Reels of 500ft)
3270-08154 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Green 1,500 ft
(3 Reels of 500ft)
3270-08164 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Blue 1,500 ft
(3 Reels of 500ft)
3270-10103 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Black 750 ft
(3 Reels of 250ft)
3270-10123 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Red 750 ft
(3 Reels of 250ft)
3270-10133 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Orange 750 ft
(3 Reels of 250ft)
3270-10143 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Yellow 750 ft
(3 Reels of 250ft)
3270-10153 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Green 750 ft
(3 Reels of 250ft)
3270-10163 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Blue 750 ft
(3 Reels of 250ft)
3270-12103 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Black 750 ft
(3 Reels of 250ft)
3270-12123 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Red 750 ft
(3 Reels of 250ft)
3270-12133 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Orange 750 ft
(3 Reels of 250ft)
3270-12153 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Green 750 ft
(3 Reels of 250ft)
3270-12163 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Blue 750 ft
(3 Reels of 250ft)

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
