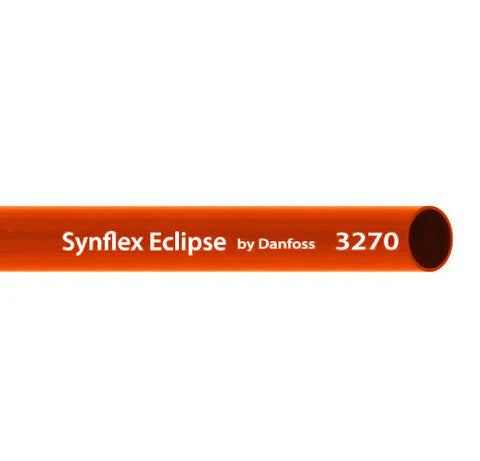

3270-08134 Synflex Solstice by Danfoss | 3270 Eclipse | Type B Truck Air Brake Tubing | .50" Tube OD | 0.38" Tube ID | 0.06" Wall Thickness | Orange | 1500 ft Length (Non-Continuous)

3270-08134 Synflex Solstice by Danfoss | 3270 Eclipse | Type B Truck Air Brake Tubing | .50" Tube OD | 0.38" Tube ID | 0.06" Wall Thickness | Orange | 1500 ft Length (Non-Continuous)

$2,985.00 - $2,985.00
$2,985.00
$2,985.00 - $2,985.00
$2,985.00

3270 Synflex Eclipse®

Type B Truck Tubing Air Brake Tubing

Package Quantity: 1500 FT

Specifications for Variant SKU: 3270-08134 Danfoss | 1500 |
Brand: Aeroquip, Synflex Eclipse
Series: Air Brake Tubing
Hose Color(s): Orange
Internal Diameter: 0.38in
Outer Diameter: 0.50in
Tubing Construction: Nylon
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE J1131, SAE J2494-2, SAE J844
Hose Properties:
Application: Truck air brake systems.
Trailer air brake systems.
Auxiliary air systems.
Not for use with fuel.		 SAE Rating: Meets: SAE J844 Type B, SAE J1131, SAE J2494-3, DOT-FMVSS 106
Other Ratings: N/A Tube: 100% Polyamide
Reinforcement: Polyester Yarn Cover: N/A
Temperature Range: -65°F to +200°F
(-54°C to +93°C)
Features: Superior abrasion resistance.
Ease of cutting.
Enhanced flexibility and extension.
Flow performance.
UV stabilized, thermoformable.
Part
Number
(3000ft)		 Part
Number
(1500ft)		 Part
Number
(1000ft)		 Part
Number
(750ft)		 Part
Number
(500ft)		 Part
Number
(250ft)		 Part
Number
(100ft)		 Tube
Size 		Tube
OD		 Tube
ID		 Wall
Thickness		 Min. Burst
Pressure		 Min. Bend
Radius		 Weight Color
mm in mm in mm in bar psi mm in lbs/100ft
3270-06104 - 3270-0610-1000 - 3270-0610-0500 - 3270-0610-0100 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Black
3270-06124 - - - 3270-0612-0500 - 3270-0612-0100 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Red
3270-06134 - - - 3270-0613-0500 - 3270-0613-0100 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Orange
3270-06144 - - - 3270-0614-0500 - 3270-0614-0100 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Yellow
3270-06154 - - - 3270-0615-0500 - 3270-0615-0100 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Green
3270-06164 - - - 3270-0616-0500 - 3270-0616-0100 -06 9,5 mm 0.375" 6,4mm 0.25" 1,6mm 0.06" 96,5 bar 1,400 psi 38,1mm 1.50" 2.80 lbs/ft Blue
- 3270-08104 3270-0810-1000 - 3270-0810-0500 - 3270-0810-0100 -06 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Black
- 3270-08124 - - 3270-0812-0500 - 3270-0812-0100 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Red
- 3270-08134 - - 3270-0813-0500 - 3270-0813-0100 -08 12,7 mm .50" 9,6mm .38" 1,6mm .06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Orange
- 3270-08144 - - 3270-0814-0500 - 3270-0814-0100 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Yellow
- 3270-08154 - - 3270-0815-0500 - 3270-0815-0100 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Green
- 3270-08164 3270-0816-1000 - 3270-0816-0500 - 3270-0816-100 -08 12,7 mm 0.50" 9,6mm 0.38" 1,6mm 0.06" 65,5 bar 950 psi 50,8mm 2.00" 3.80 lbs/ft Blue
- - - 3270-10103 - 3270-1010-0250 3270-1010-0100 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Black
- - - 3270-10123 - 3270-1012-0250 3270-1012-0100 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Red
- - - 3270-10133 - 3270-1013-0250 3270-1013-0100 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Orange
- - - 3270-10143 - 3270-1014-0250 3270-1014-0100 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Yellow
- - - 3270-10153 - - 3270-1015-0100 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Green
- - - 3270-10163 - 3270-1016-0250 3270-1016-0100 -10 15,9 mm 0.625" 11,2mm 0.44" 2,3mm 0.09" 62,1 bar 900 psi 63,5mm 2.50" 7.00 lbs/ft Blue
- - - 3270-12103 3270-1210-0250 3270-1210-0100 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Black
- - - 3270-12123 - - - -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Red
- - - 3270-12133 - 3270-1213-0250 3270-1213-0100 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Orange
- - - 3270-12153 - 3270-1215-0250 3270-1215-0100 -12 19,1 mm 0.75" 14,4mm 0.57" 2,3mm 0.09" 55,2 bar 800 psi 76,2mm 3.00" 8.60 lbs/ft Green

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
