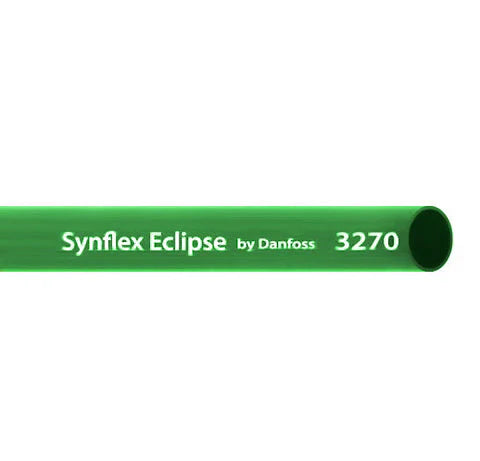

3270-10153 Synflex Solstice by Danfoss | 3270 Eclipse | Type B Truck Air Brake Tubing | .625" Tube OD | 0.44" Tube ID | 0.09" Wall Thickness | Green | 750 ft Length (Non-Continuous)

$2,770.19 - $2,770.19

$2,770.19

$2,770.19 - $2,770.19

$2,770.19

Synflex by Danfoss
3270 Eclipse Series | Type B Truck Air Brake Tubing

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Package Quantity: 750 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3270-10153 Danfoss \| 750 \|
Brand:	Aeroquip, Synflex Eclipse
Series:	Air Brake Tubing
Hose Color(s):	Green
Internal Diameter:	0.44in
Outer Diameter:	0.63in
Tubing Construction:	Nylon
Applicable Specs & Approvals:	D.O.T. FMVSS 106, SAE J1131, SAE J2494-2, SAE J844

Hose Properties:
Application:	Truck air brake systems. Trailer air brake systems. Auxiliary air systems. Not for use with fuel.	SAE Rating:	Meets: SAE J844 Type B, SAE J1131, SAE J2494-3, DOT-FMVSS 106
Other Ratings:	N/A	Tube:	100% Polyamide
Reinforcement:	Polyester Yarn	Cover:	N/A
Temperature Range:	-65°F to +200°F (-54°C to +93°C)
Features:	Superior abrasion resistance. Ease of cutting. Enhanced flexibility and extension. Flow performance. UV stabilized, thermoformable.

Part Number	Tube Size	Tube OD		Tube ID		Wall Thickness		Min. Burst Pressure		Min. Bend Radius		Weight	Color	Package Length
Part Number	Tube Size	mm	in	mm	in	mm	in	bar	psi	mm	in	lbs/100ft	Color	ft
3270-06104	-06	9,5 mm	0.375"	6,4mm	0.25"	1,6mm	0.06"	96,5 bar	1,400 psi	38,1mm	1.50"	2.80 lbs/ft	Black	3,000 ft (6 Reels of 500ft)
3270-06124	-06	9,5 mm	0.375"	6,4mm	0.25"	1,6mm	0.06"	96,5 bar	1,400 psi	38,1mm	1.50"	2.80 lbs/ft	Red	3,000 ft (6 Reels of 500ft)
3270-06134	-06	9,5 mm	0.375"	6,4mm	0.25"	1,6mm	0.06"	96,5 bar	1,400 psi	38,1mm	1.50"	2.80 lbs/ft	Orange	3,000 ft (6 Reels of 500ft)
3270-06144	-06	9,5 mm	0.375"	6,4mm	0.25"	1,6mm	0.06"	96,5 bar	1,400 psi	38,1mm	1.50"	2.80 lbs/ft	Yellow	3,000 ft (6 Reels of 500ft)
3270-06154	-06	9,5 mm	0.375"	6,4mm	0.25"	1,6mm	0.06"	96,5 bar	1,400 psi	38,1mm	1.50"	2.80 lbs/ft	Green	3,000 ft (6 Reels of 500ft)
3270-06164	-06	9,5 mm	0.375"	6,4mm	0.25"	1,6mm	0.06"	96,5 bar	1,400 psi	38,1mm	1.50"	2.80 lbs/ft	Blue	3,000 ft (6 Reels of 500ft)
3270-08104	-08	12,7 mm	0.50"	9,6mm	0.38"	1,6mm	0.06"	65,5 bar	950 psi	50,8mm	2.00"	3.80 lbs/ft	Black	1,500 ft (3 Reels of 500ft)
3270-08124	-08	12,7 mm	0.50"	9,6mm	0.38"	1,6mm	0.06"	65,5 bar	950 psi	50,8mm	2.00"	3.80 lbs/ft	Red	1,500 ft (3 Reels of 500ft)
3270-08144	-08	12,7 mm	0.50"	9,6mm	0.38"	1,6mm	0.06"	65,5 bar	950 psi	50,8mm	2.00"	3.80 lbs/ft	Yellow	1,500 ft (3 Reels of 500ft)
3270-08154	-08	12,7 mm	0.50"	9,6mm	0.38"	1,6mm	0.06"	65,5 bar	950 psi	50,8mm	2.00"	3.80 lbs/ft	Green	1,500 ft (3 Reels of 500ft)
3270-08164	-08	12,7 mm	0.50"	9,6mm	0.38"	1,6mm	0.06"	65,5 bar	950 psi	50,8mm	2.00"	3.80 lbs/ft	Blue	1,500 ft (3 Reels of 500ft)
3270-10103	-10	15,9 mm	0.625"	11,2mm	0.44"	2,3mm	0.09"	62,1 bar	900 psi	63,5mm	2.50"	7.00 lbs/ft	Black	750 ft (3 Reels of 250ft)
3270-10123	-10	15,9 mm	0.625"	11,2mm	0.44"	2,3mm	0.09"	62,1 bar	900 psi	63,5mm	2.50"	7.00 lbs/ft	Red	750 ft (3 Reels of 250ft)
3270-10133	-10	15,9 mm	0.625"	11,2mm	0.44"	2,3mm	0.09"	62,1 bar	900 psi	63,5mm	2.50"	7.00 lbs/ft	Orange	750 ft (3 Reels of 250ft)
3270-10143	-10	15,9 mm	0.625"	11,2mm	0.44"	2,3mm	0.09"	62,1 bar	900 psi	63,5mm	2.50"	7.00 lbs/ft	Yellow	750 ft (3 Reels of 250ft)
3270-10153	-10	15,9 mm	0.625"	11,2mm	0.44"	2,3mm	0.09"	62,1 bar	900 psi	63,5mm	2.50"	7.00 lbs/ft	Green	750 ft (3 Reels of 250ft)
3270-10163	-10	15,9 mm	0.625"	11,2mm	0.44"	2,3mm	0.09"	62,1 bar	900 psi	63,5mm	2.50"	7.00 lbs/ft	Blue	750 ft (3 Reels of 250ft)
3270-12103	-12	19,1 mm	0.75"	14,4mm	0.57"	2,3mm	0.09"	55,2 bar	800 psi	76,2mm	3.00"	8.60 lbs/ft	Black	750 ft (3 Reels of 250ft)
3270-12123	-12	19,1 mm	0.75"	14,4mm	0.57"	2,3mm	0.09"	55,2 bar	800 psi	76,2mm	3.00"	8.60 lbs/ft	Red	750 ft (3 Reels of 250ft)
3270-12133	-12	19,1 mm	0.75"	14,4mm	0.57"	2,3mm	0.09"	55,2 bar	800 psi	76,2mm	3.00"	8.60 lbs/ft	Orange	750 ft (3 Reels of 250ft)
3270-12153	-12	19,1 mm	0.75"	14,4mm	0.57"	2,3mm	0.09"	55,2 bar	800 psi	76,2mm	3.00"	8.60 lbs/ft	Green	750 ft (3 Reels of 250ft)
3270-12163	-12	19,1 mm	0.75"	14,4mm	0.57"	2,3mm	0.09"	55,2 bar	800 psi	76,2mm	3.00"	8.60 lbs/ft	Blue	750 ft (3 Reels of 250ft)

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
