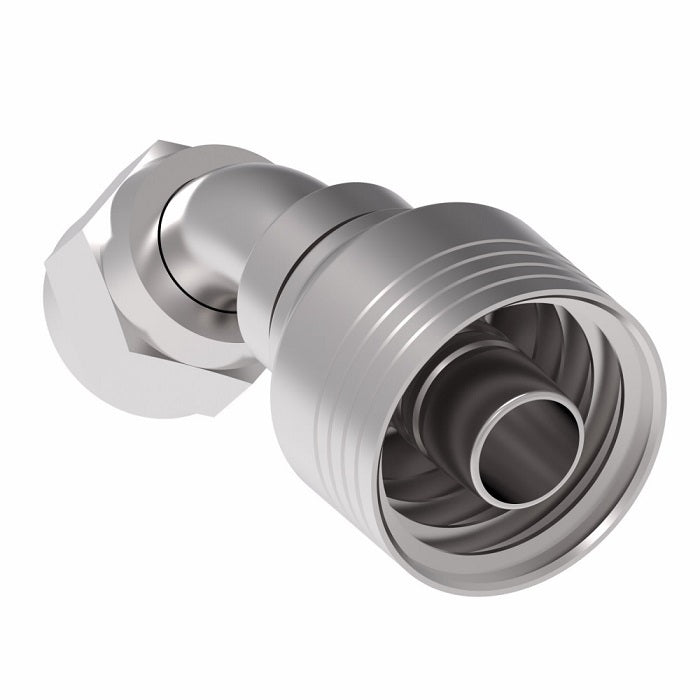

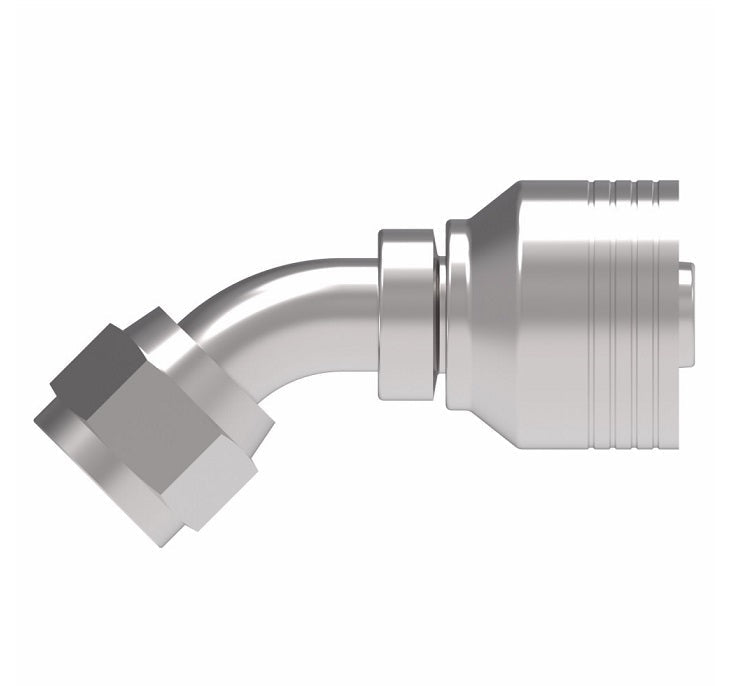

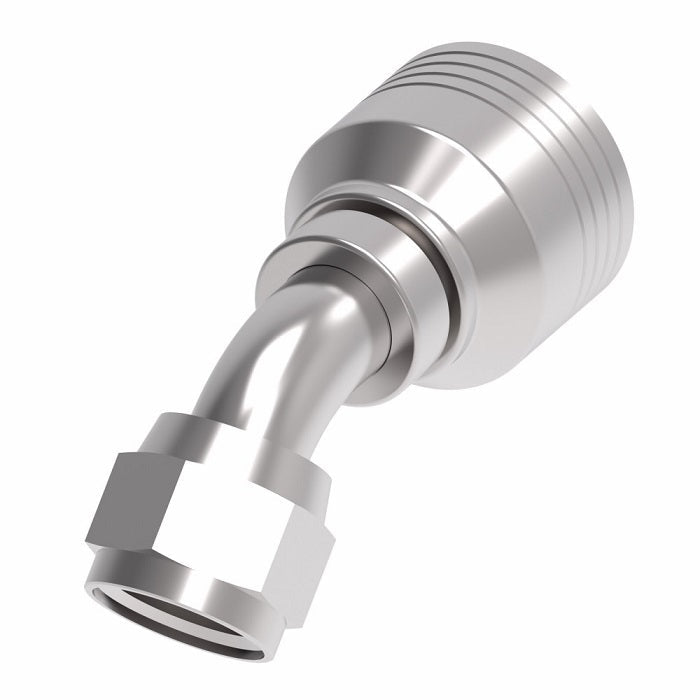

4SA10FJA10 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -10 Female Pipe JIC 37° Swivel x -10 Hose Barb | Steel

4SA10FJA10 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -10 Female Pipe JIC 37° Swivel x -10 Hose Barb | Steel | Pack of 10

$377.87 - $377.87

$377.87

$377.87 - $377.87

$377.87

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA10FJA10 Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Female JIC, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst. The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H
4SA6FJA6	-06	-	-06	9/16-18	2.22"	1.31"	0.24"	0.39"	11/16"
4SA8FJA6	-08	-	-06	3/4-16	2.98"	2.14"	0.26"	0.95"	7/8"
4SA8FJA8	-08	-	-08	3/4-16	2.87"	1.65"	0.37"	0.55"	7/8"
4SA10FJA8	-10	-	-08	7/8-14	3.25"	2.18"	0.37"	1.00"	1"
4SA10FJA10	-10	-	-10	7/8-14	2.82"	1.79"	0.46"	0.63"	1"
4SA12FJA10	-12	-	-10	1-1/16-12	3.65"	2.62"	0.50"	1.16"	1-1/4"
4SA12FJA12	-12	19	-12	1-1/16-12	4.42"	3.00"	0.56"	1.14"	1-1/4"
4SA16FJA12	-16	19	-12	1-5/16-12	5.26"	3.84"	0.56"	1.50"	1-1/2"
4SA16FJA16	-16	25	-16	1-5/16-12	5.07"	3.52"	0.76"	1.50"	1-1/2"
4SA20FJA16	-20	25	-16	1-5/8-12	4.73"	3.17"	0.75"	1.26"	2"
4SA20FJA20	-20	31	-20	1-5/8-12	5.34"	3.17"	0.99"	1.26"	2"
4SA24FJA24	-24	38	-24	1-7/8-12	8.35"	5.28"	1.22"	1.69"	2-1/4"
