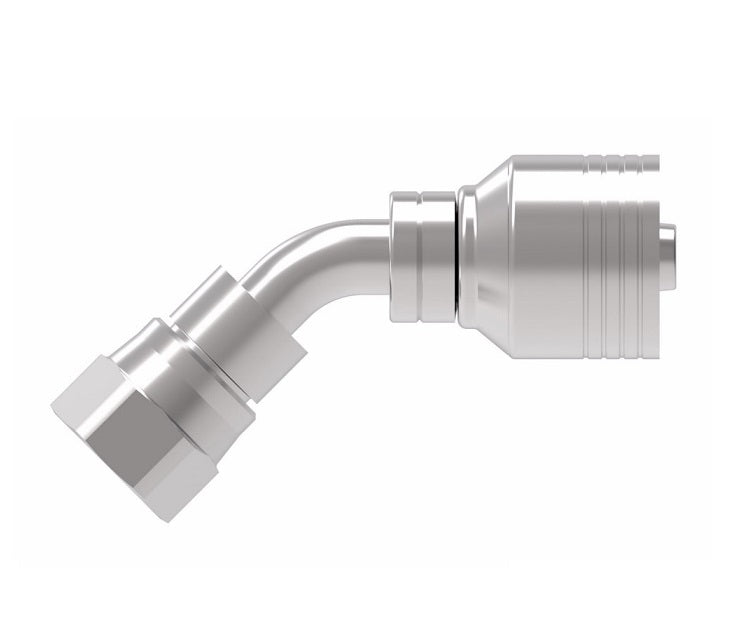

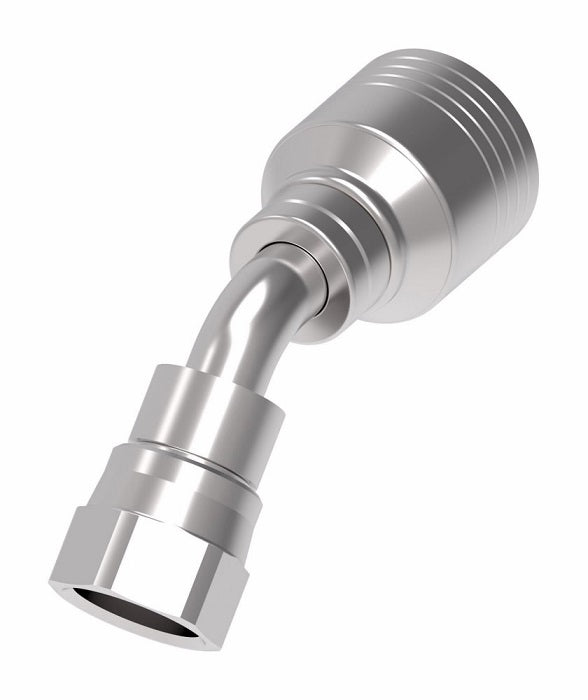

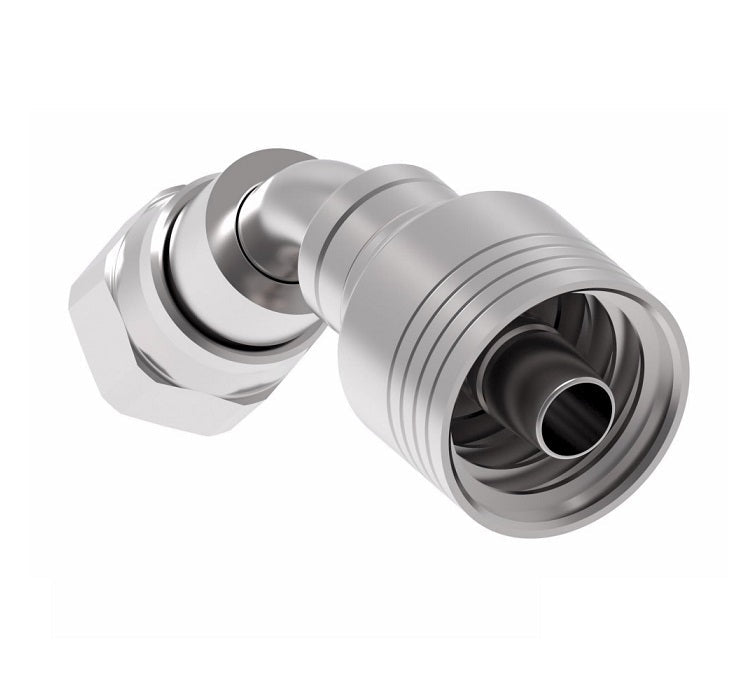

4SA10FJA8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -10 Female Pipe JIC 37° Swivel x -08 Hose Barb | Steel

4SA10FJA8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -10 Female Pipe JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10

$605.49 - $605.49

$605.49

$605.49 - $605.49

$605.49

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA10FJA8 Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst. The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H
4SA6FJA6	-06	-	-06	9/16-18	2.22"	1.31"	0.24"	0.39"	11/16"
4SA8FJA6	-08	-	-06	3/4-16	2.98"	2.14"	0.26"	0.95"	7/8"
4SA8FJA8	-08	-	-08	3/4-16	2.87"	1.65"	0.37"	0.55"	7/8"
4SA10FJA8	-10	-	-08	7/8-14	3.25"	2.18"	0.37"	1.00"	1"
4SA10FJA10	-10	-	-10	7/8-14	2.82"	1.79"	0.46"	0.63"	1"
4SA12FJA10	-12	-	-10	1-1/16-12	3.65"	2.62"	0.50"	1.16"	1-1/4"
4SA12FJA12	-12	19	-12	1-1/16-12	4.42"	3.00"	0.56"	1.14"	1-1/4"
4SA16FJA12	-16	19	-12	1-5/16-12	5.26"	3.84"	0.56"	1.50"	1-1/2"
4SA16FJA16	-16	25	-16	1-5/16-12	5.07"	3.52"	0.76"	1.50"	1-1/2"
4SA20FJA16	-20	25	-16	1-5/8-12	4.73"	3.17"	0.75"	1.26"	2"
4SA20FJA20	-20	31	-20	1-5/8-12	5.34"	3.17"	0.99"	1.26"	2"
4SA24FJA24	-24	38	-24	1-7/8-12	8.35"	5.28"	1.22"	1.69"	2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
