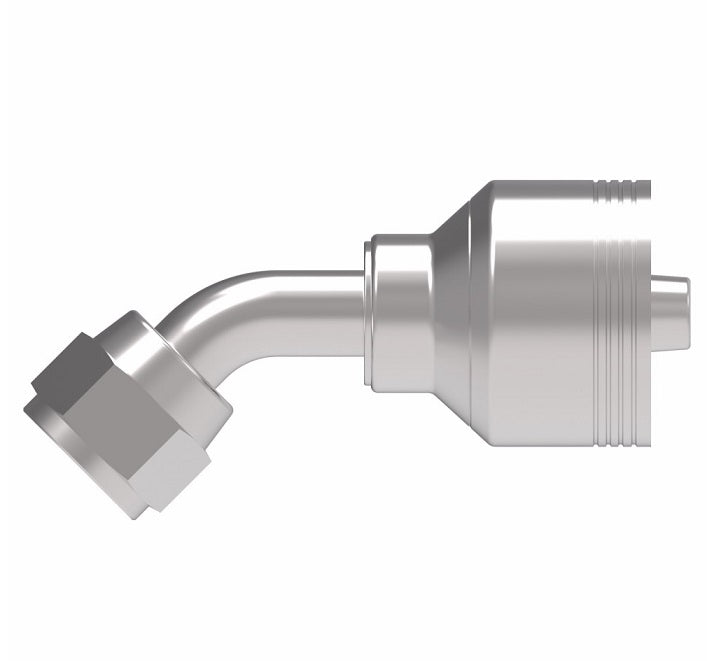

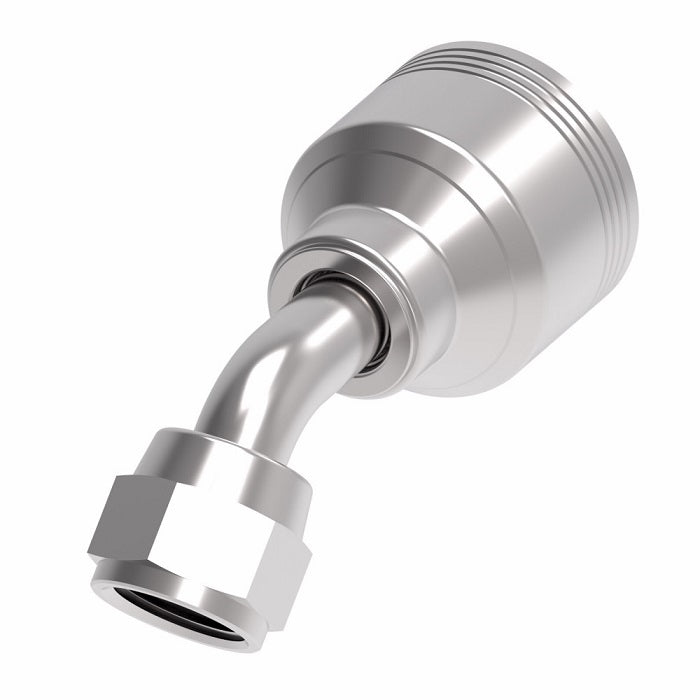

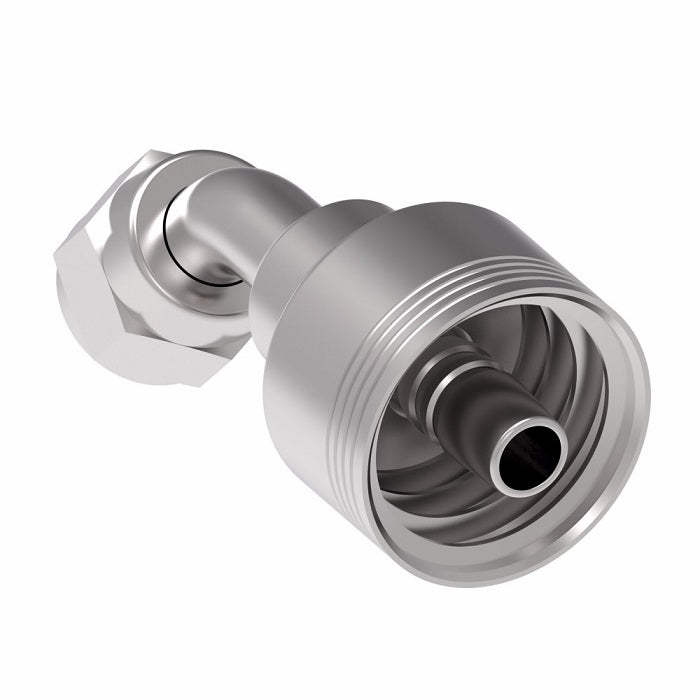

4SA6FJA6 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -04 Female Pipe JIC 37° Swivel x -06 Hose Barb | Steel
4SA6FJA6 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -04 Female Pipe JIC 37° Swivel x -06 Hose Barb | Steel | Pack of 10
4SA6FJA6 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -04 Female Pipe JIC 37° Swivel x -06 Hose Barb | Steel | Pack of 10
4SA6FJA6 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -04 Female Pipe JIC 37° Swivel x -06 Hose Barb | Steel

4SA6FJA6 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -04 Female Pipe JIC 37° Swivel x -06 Hose Barb | Steel | Pack of 10

$345.34 - $345.34
$345.34
$345.34 - $345.34
$345.34

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA6FJA6 Danfoss | 10 |
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female JIC, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FJA6 -06 - -06 9/16-18 2.22" 1.31" 0.24" 0.39" 11/16"
4SA8FJA6 -08 - -06 3/4-16 2.98" 2.14" 0.26" 0.95" 7/8"
4SA8FJA8 -08 - -08 3/4-16 2.87" 1.65" 0.37" 0.55" 7/8"
4SA10FJA8 -10 - -08 7/8-14 3.25" 2.18" 0.37" 1.00" 1"
4SA10FJA10 -10 - -10 7/8-14 2.82" 1.79" 0.46" 0.63" 1"
4SA12FJA10 -12 - -10 1-1/16-12 3.65" 2.62" 0.50" 1.16" 1-1/4"
4SA12FJA12 -12 19 -12 1-1/16-12 4.42" 3.00" 0.56" 1.14" 1-1/4"
4SA16FJA12 -16 19 -12 1-5/16-12 5.26" 3.84" 0.56" 1.50" 1-1/2"
4SA16FJA16 -16 25 -16 1-5/16-12 5.07" 3.52" 0.76" 1.50" 1-1/2"
4SA20FJA16 -20 25 -16 1-5/8-12 4.73" 3.17" 0.75" 1.26" 2"
4SA20FJA20 -20 31 -20 1-5/8-12 5.34" 3.17" 0.99" 1.26" 2"
4SA24FJA24 -24 38 -24 1-7/8-12 8.35" 5.28" 1.22" 1.69" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
