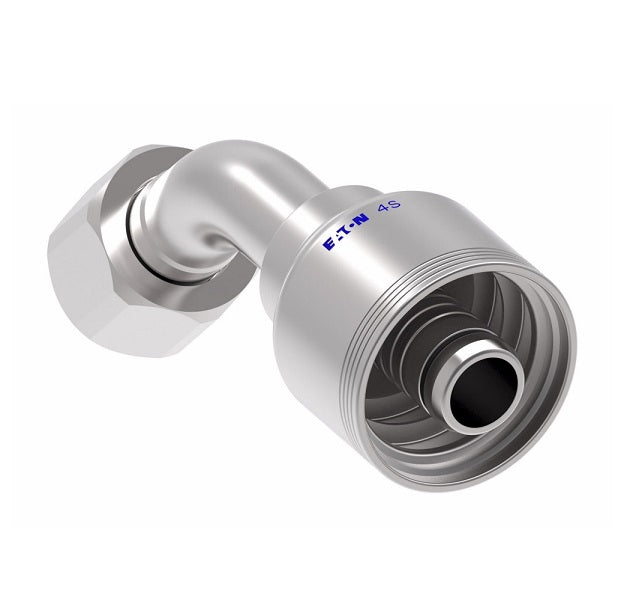

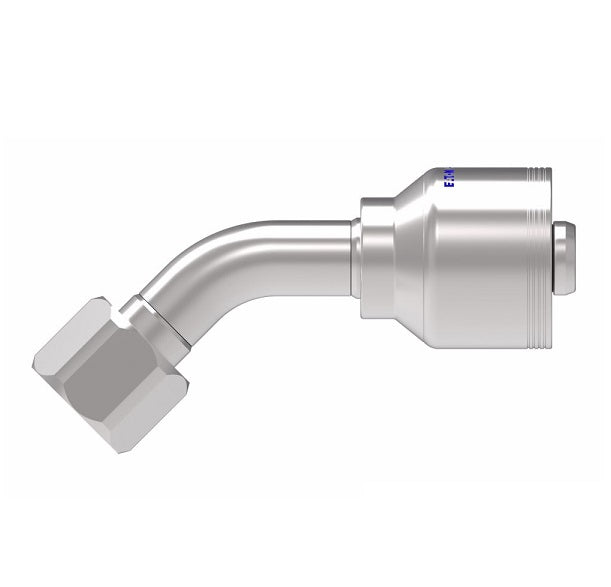

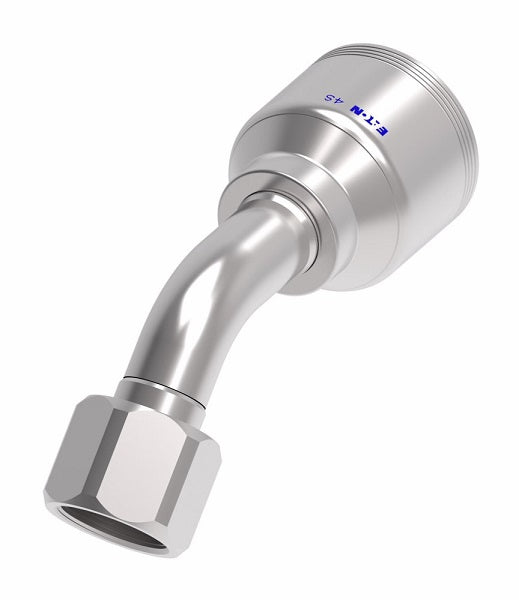

4SA16FJA12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -16 Female JIC/37° Swivel x -12 Hose Barb | Steel
4SA16FJA12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -16 Female JIC/37° Swivel x -12 Hose Barb | Steel
4SA16FJA12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -16 Female JIC/37° Swivel x -12 Hose Barb | Steel
4SA16FJA12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -16 Female JIC/37° Swivel x -12 Hose Barb | Steel

4SA16FJA12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -16 Female JIC/37° Swivel x -12 Hose Barb | Steel

$106.50 - $106.50
$106.50
$106.50 - $106.50
$106.50

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA16FJA12 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1in Female JIC, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FJA6 -06 - -06 9/16-18 2.22" 1.31" 0.24" 0.39" 11/16"
4SA8FJA6 -08 - -06 3/4-16 2.98" 2.14" 0.26" 0.95" 7/8"
4SA8FJA8 -08 - -08 3/4-16 2.87" 1.65" 0.37" 0.55" 7/8"
4SA10FJA8 -10 - -08 7/8-14 3.25" 2.18" 0.37" 1.00" 1"
4SA10FJA10 -10 - -10 7/8-14 2.82" 1.79" 0.46" 0.63" 1"
4SA12FJA10 -12 - -10 1-1/16-12 3.65" 2.62" 0.50" 1.16" 1-1/4"
4SA12FJA12 -12 19 -12 1-1/16-12 4.42" 3.00" 0.56" 1.14" 1-1/4"
4SA16FJA12 -16 19 -12 1-5/16-12 5.26" 3.84" 0.56" 1.50" 1-1/2"
4SA16FJA16 -16 25 -16 1-5/16-12 5.07" 3.52" 0.76" 1.50" 1-1/2"
4SA20FJA16 -20 25 -16 1-5/8-12 4.73" 3.17" 0.75" 1.26" 2"
4SA20FJA20 -20 31 -20 1-5/8-12 5.34" 3.17" 0.99" 1.26" 2"
4SA24FJA24 -24 38 -24 1-7/8-12 8.35" 5.28" 1.22" 1.69" 2-1/4"
