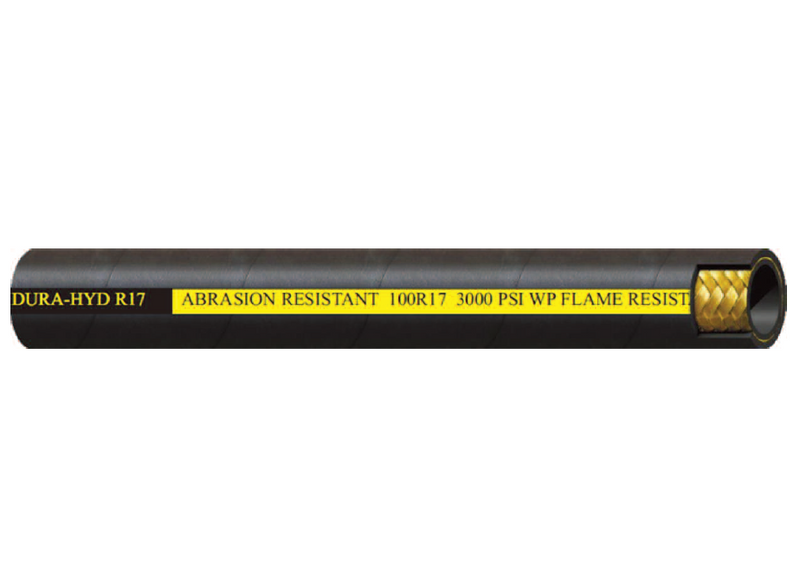

5/8" WDH17 Couplamatic Import DURA-HYD Wrapped Cover Abrasion Resistant One or Two Wire Hydraulic Hose (SAE 100R17) - 5/8" ID - 250ft

5/8" WDH17 by Couplamatic | Import DURA-HYD Wrapped Cover Abrasion Resistant | One or Two Wire Hydraulic Hose | SAE 100R17 | 5/8" ID | 250ft

Save $105.67

$951.00

$951.00 - $951.00

$951.00

$845.33

$845.33 - $845.33

$845.33

Couplamatic Systems Inc.
One or Two Wire Braid - WWDH17 DURA-HYD Abrasion Resistant Wrapped Cover Import Hydraulic Hose (SAE 100R17)

Package Quantity: 250 FT

Quantity

Specifications for Variant SKU: 5/8" WDH17 Couplamatic \| 250 \|
Series:	WDH17 Series
Hose Color(s):	Black
Dash Size:	-10
Internal Diameter:	0.625in
Outer Diameter:	0.95in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R17
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series \| GW Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R17
Cover:	Flame Resistant, Extra Abrasion Resistant, Yellow layline, MSHA	Reinforcement:	One or Two Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" WDH17	1/4"	0.535"	3,000 lbs.	12,000 lbs.	2"	16 lbs.	500ft
3/8" WDH17	3/8"	0.690"	3,000 lbs.	12,000 lbs.	2.5"	23 lbs.	500ft
1/2" WDH17	1/2"	0.810"	3,000 lbs.	12,000 lbs.	3.5"	29 lbs.	350ft
5/8" WDH17	5/8"	0.950"	3,000 lbs.	12,000 lbs.	5"	38 lbs.	250ft
3/4" WDH17	3/4"	1.100"	3,000 lbs.	12,000 lbs.	5"	55 lbs.	250ft
1" WDH17	1"	1.410"	3,000 lbs.	12,000 lbs.	6"	82 lbs.	200ft
