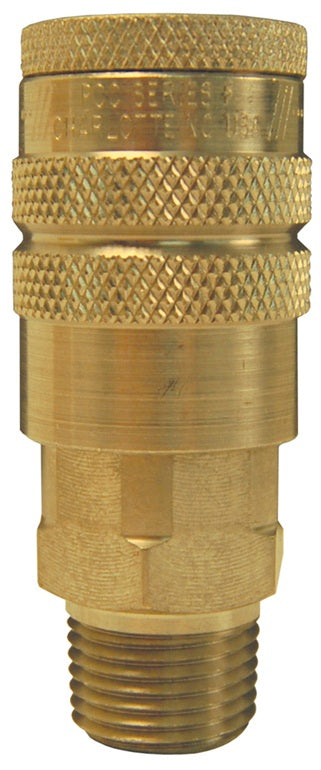

DC2103 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 3/8" Male NPT x 1/4" Body Size | Brass

DC2103 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 3/8" Male NPT x 1/4" Body Size | Brass

Save $8.01 Save $8.01
$20.02
$20.02 - $20.02
$20.02
$12.01
$12.01 - $12.01
$12.01

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: DC2103 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 3/8in Male NPT
Material(s): Brass
Features:
  • Semi-automatic - pull sleeve to connect.
  • Couplers shut-off when disconnected.
  • Interchanges with many other manufacturer's designs.
Construction:
  • Steel
Specifications:
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B.
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
Brass
Part Number		 Steel
Part Number		 Body Size Male NPT Flow Rating
at 100 PSI
DC2101 - 1/4" 1/8" Male NPT 37 CFM
DC21 - 1/4" 1/4" Male NPT 37 CFM
DC2103 - 1/4" 3/8" Male NPT 37 CFM
- DC2502 3/8" 1/4" Male NPT 70 CFM
- DC25 3/8" 3/8" Male NPT 70 CFM
- DC2504 3/8" 1/2" Male NPT 70 CFM
- DC903 1/2" 3/8" Male NPT 150 CFM
- DC9 1/2" 1/2" Male NPT 150 CFM
- DC906 1/2" 3/4" Male NPT 150 CFM
