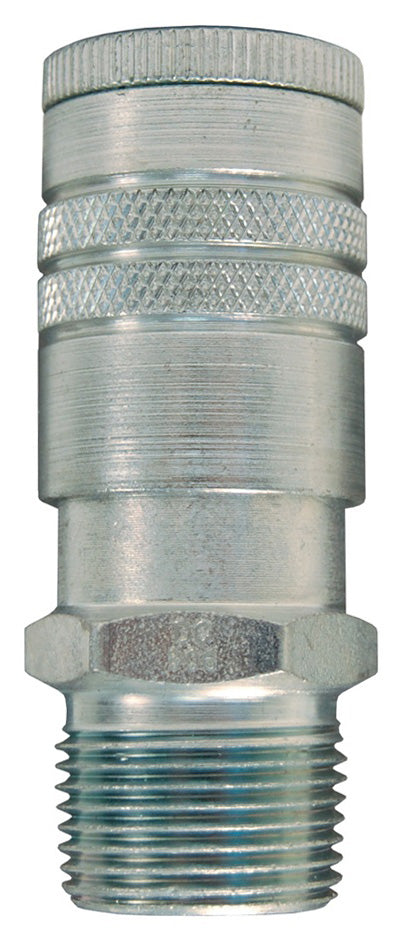

DC906 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 3/4" Male NPT x 1/2" Body Size | Steel

DC906 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 3/4" Male NPT x 1/2" Body Size | Steel

Save $3.93 Save $3.93
$35.38
$35.38 - $35.38
$35.38
$31.45
$31.45 - $31.45
$31.45

Air Chief Automotive Interchange Quick-Connect Couplers Air Chief automotive quick-connect couplers will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: DC906 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 3/4in Male NPT
Material(s): Steel
Features:
  • Semi-automatic - pull sleeve to connect.
  • Couplers shut-off when disconnected.
  • Interchanges with many other manufacturer's designs.
Construction:
  • Steel
Specifications:
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B.
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
Brass
Part Number		 Steel
Part Number		 Body Size Male NPT Flow Rating
at 100 PSI
DC2101 - 1/4" 1/8" Male NPT 37 CFM
DC21 - 1/4" 1/4" Male NPT 37 CFM
DC2103 - 1/4" 3/8" Male NPT 37 CFM
- DC2502 3/8" 1/4" Male NPT 70 CFM
- DC25 3/8" 3/8" Male NPT 70 CFM
- DC2504 3/8" 1/2" Male NPT 70 CFM
- DC903 1/2" 3/8" Male NPT 150 CFM
- DC9 1/2" 1/2" Male NPT 150 CFM
- DC906 1/2" 3/4" Male NPT 150 CFM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
