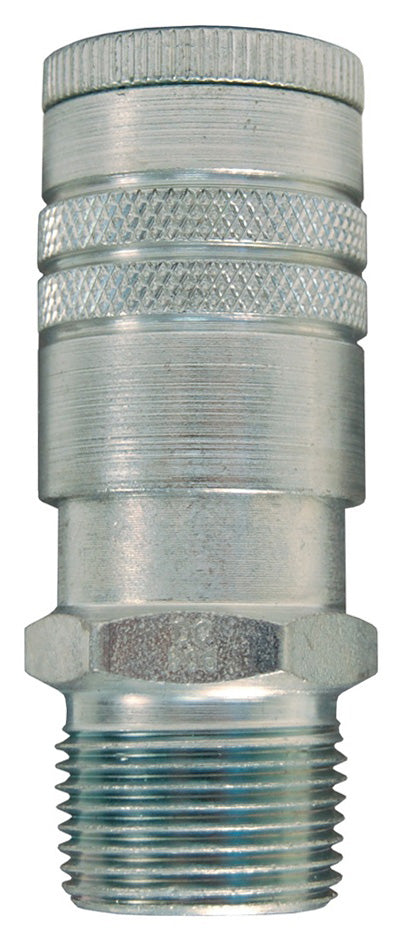

DC25 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 3/8" Male NPT x 3/8" Body Size | Steel

Name: DC25 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 3/8" Male NPT x 3/8" Body Size | Steel
Brand: Dixon
SKU: DC25 Dixon
Price: 20.27 USD
Availability: InStock

Save $2.53

$22.80

$22.80 - $22.80

$22.80

$20.27

$20.27 - $20.27

$20.27

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Quantity

Specifications for Variant SKU: DC25 Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 3/8in Male NPT
Material(s):	Steel

Features:
Semi-automatic - pull sleeve to connect. Couplers shut-off when disconnected. Interchanges with many other manufacturer's designs.
Construction:
Steel
Specifications:
Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B. Pressure rating: 300 PSI Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
For air service only.

Brass Part Number	Steel Part Number	Body Size	Male NPT	Flow Rating at 100 PSI
DC2101	-	1/4"	1/8" Male NPT	37 CFM
DC21	-	1/4"	1/4" Male NPT	37 CFM
DC2103	-	1/4"	3/8" Male NPT	37 CFM
-	DC2502	3/8"	1/4" Male NPT	70 CFM
-	DC25	3/8"	3/8" Male NPT	70 CFM
-	DC2504	3/8"	1/2" Male NPT	70 CFM
-	DC903	1/2"	3/8" Male NPT	150 CFM
-	DC9	1/2"	1/2" Male NPT	150 CFM
-	DC906	1/2"	3/4" Male NPT	150 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
