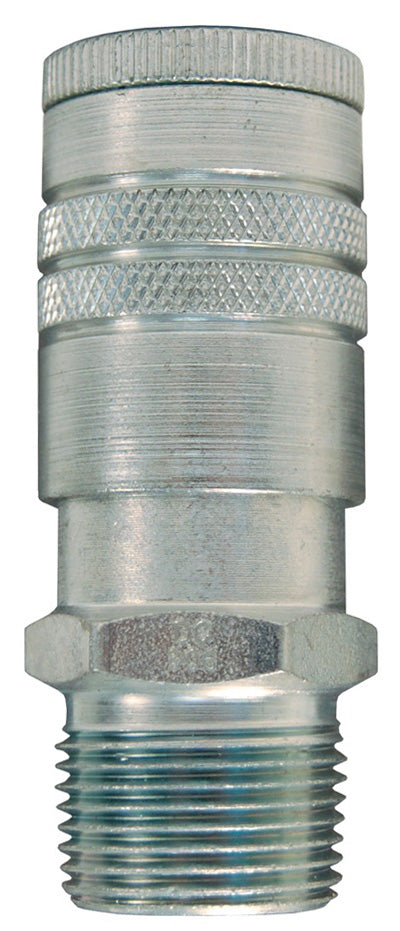

DC2502 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 1/4" Male NPT x 3/8" Body Size | Steel

DC2502 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 1/4" Male NPT x 3/8" Body Size | Steel

Save $13.17 Save $13.17
$32.92
$32.92 - $32.92
$32.92
$19.75
$19.75 - $19.75
$19.75

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: DC2502 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 1/4in Male NPT
Material(s): Steel
Features:
  • Semi-automatic - pull sleeve to connect.
  • Couplers shut-off when disconnected.
  • Interchanges with many other manufacturer's designs.
Construction:
  • Steel
Specifications:
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B.
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
Brass
Part Number		 Steel
Part Number		 Body Size Male NPT Flow Rating
at 100 PSI
DC2101 - 1/4" 1/8" Male NPT 37 CFM
DC21 - 1/4" 1/4" Male NPT 37 CFM
DC2103 - 1/4" 3/8" Male NPT 37 CFM
- DC2502 3/8" 1/4" Male NPT 70 CFM
- DC25 3/8" 3/8" Male NPT 70 CFM
- DC2504 3/8" 1/2" Male NPT 70 CFM
- DC903 1/2" 3/8" Male NPT 150 CFM
- DC9 1/2" 1/2" Male NPT 150 CFM
- DC906 1/2" 3/4" Male NPT 150 CFM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
