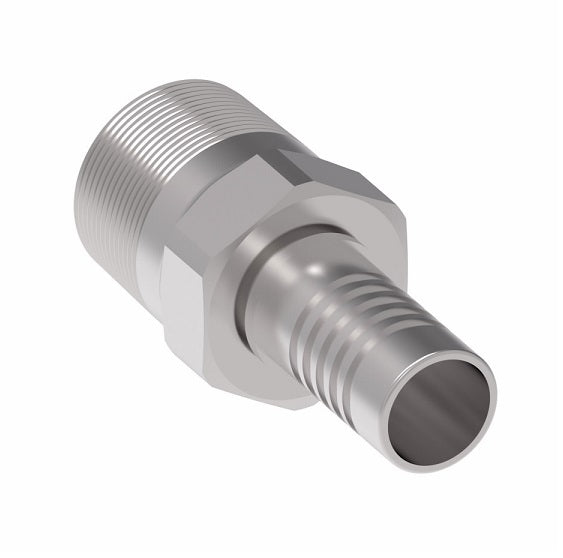

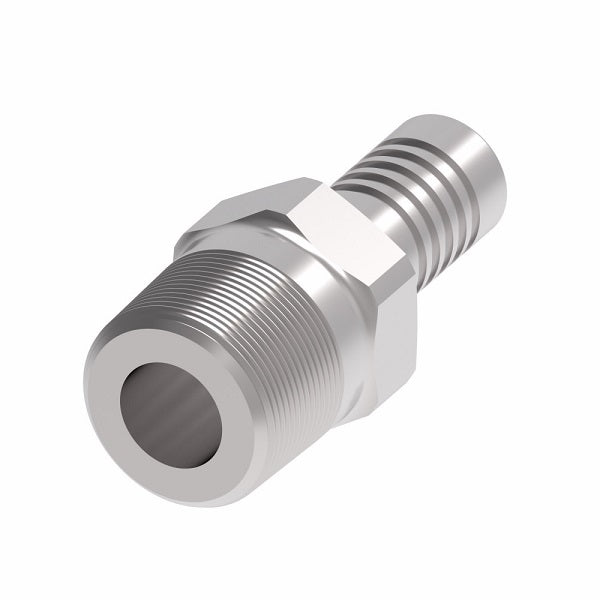

FC3680-0404S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -04 Hose Barb | Steel
FC3680-0404S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -04 Hose Barb | Steel
FC3680-0404S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -04 Hose Barb | Steel
FC3680-0404S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -04 Hose Barb | Steel

FC3680-0404S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -04 Hose Barb | Steel

$28.92 - $28.92
$28.92
$28.92 - $28.92
$28.92

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC3680-0404S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 2
FC9846-0204S FC3680-0204S FC3596-04S 1/8-27 -04 1.25" 0.66" 0.12" 7/16"
FC9846-0404S FC3680-0404S FC3596-04S 1/4-18 -04 1.50" 0.91" 0.12" 9/16"
FC9846-0405S FC3680-0405S FC3443-04S 1/4-18 -05 1.40" 0.91" 0.19" 9/16"
FC9846-0406S FC3680-0406S FC3443-05S 1/4-18 -06 1.40" 0.91" 0.25" 9/16"
FC9846-0606S FC3680-0606S FC3443-05S 3/8-18 -06 1.40" 0.91" 0.25" 11/16"
FC9846-0608S FC3680-0608S FC3596-08S 3/8-18 -08 1.80" 0.91" 0.34" 11/16"
FC9846-0808S FC3680-0808S FC3596-08S 1/2-14 -08 2.04" 1.16" 0.34" 7/8"
FC9846-0810S FC3680-0810S FC3443-08S 1/2-14 -10 2.04" 1.16" 0.44" 7/8"
FC9846-1212S FC3680-1212S FC3596-12S 3/4-14 -12 2.04" 1.16" 0.56" 1-1/16"
FC9846-1616S FC3680-1616S FC3596-16S 1-11-1/2 -16 2.32" 1.44" 0.80" 1-3/8"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
