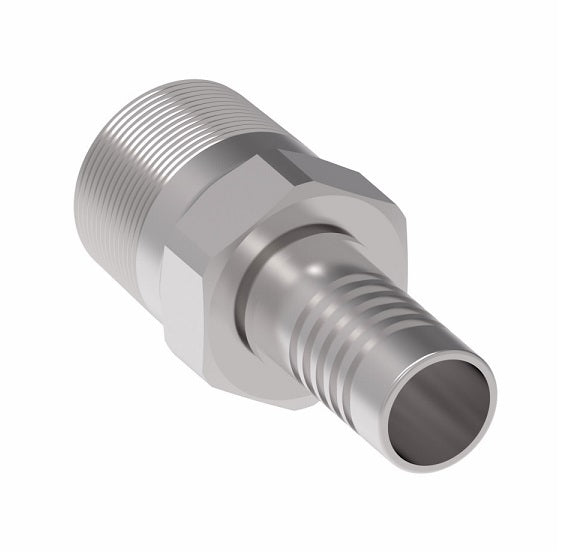

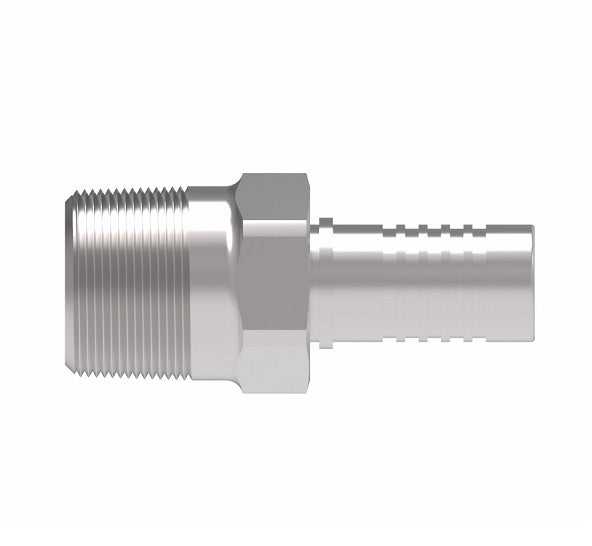

FC3680-0608S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -06 Male Pipe x -08 Hose Barb | Steel

FC3680-0608S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -06 Male Pipe x -08 Hose Barb | Steel

$13.68 - $13.68

$13.68

$13.68 - $13.68

$13.68

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC3680-0608S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
FC9846-0204S	FC3680-0204S	FC3596-04S	1/8-27	-04	1.25"	0.66"	0.12"	7/16"
FC9846-0404S	FC3680-0404S	FC3596-04S	1/4-18	-04	1.50"	0.91"	0.12"	9/16"
FC9846-0405S	FC3680-0405S	FC3443-04S	1/4-18	-05	1.40"	0.91"	0.19"	9/16"
FC9846-0406S	FC3680-0406S	FC3443-05S	1/4-18	-06	1.40"	0.91"	0.25"	9/16"
FC9846-0606S	FC3680-0606S	FC3443-05S	3/8-18	-06	1.40"	0.91"	0.25"	11/16"
FC9846-0608S	FC3680-0608S	FC3596-08S	3/8-18	-08	1.80"	0.91"	0.34"	11/16"
FC9846-0808S	FC3680-0808S	FC3596-08S	1/2-14	-08	2.04"	1.16"	0.34"	7/8"
FC9846-0810S	FC3680-0810S	FC3443-08S	1/2-14	-10	2.04"	1.16"	0.44"	7/8"
FC9846-1212S	FC3680-1212S	FC3596-12S	3/4-14	-12	2.04"	1.16"	0.56"	1-1/16"
FC9846-1616S	FC3680-1616S	FC3596-16S	1-11-1/2	-16	2.32"	1.44"	0.80"	1-3/8"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
