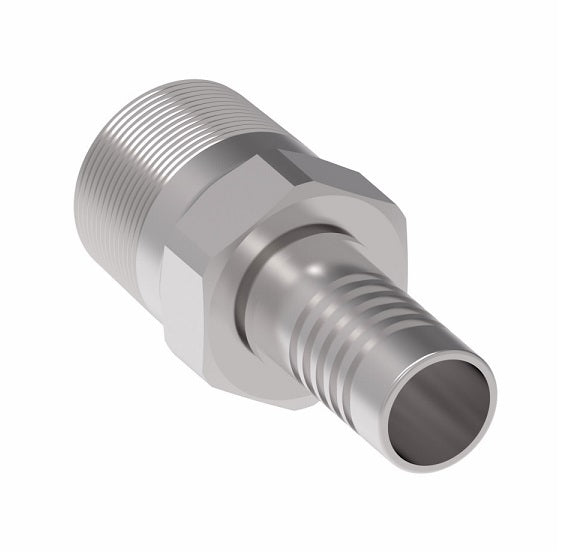

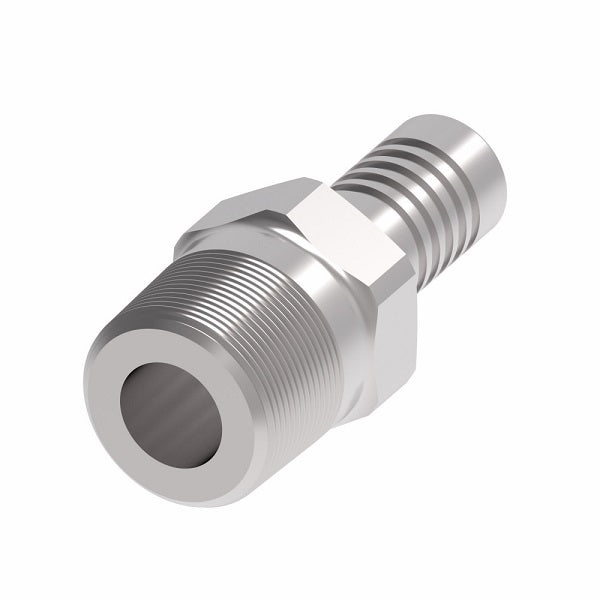

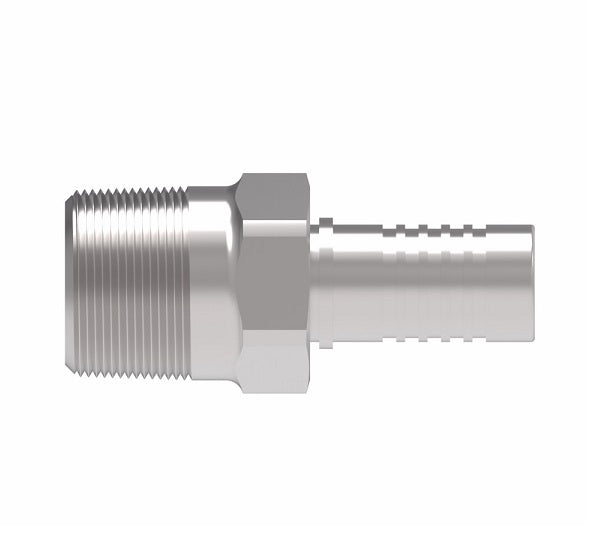

FC3680-1212S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -12 Male Pipe x -12 Hose Barb | Steel

FC3680-1212S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -12 Male Pipe x -12 Hose Barb | Steel

$59.90 - $59.90

$59.90

$59.90 - $59.90

$59.90

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC3680-1212S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
FC9846-0204S	FC3680-0204S	FC3596-04S	1/8-27	-04	1.25"	0.66"	0.12"	7/16"
FC9846-0404S	FC3680-0404S	FC3596-04S	1/4-18	-04	1.50"	0.91"	0.12"	9/16"
FC9846-0405S	FC3680-0405S	FC3443-04S	1/4-18	-05	1.40"	0.91"	0.19"	9/16"
FC9846-0406S	FC3680-0406S	FC3443-05S	1/4-18	-06	1.40"	0.91"	0.25"	9/16"
FC9846-0606S	FC3680-0606S	FC3443-05S	3/8-18	-06	1.40"	0.91"	0.25"	11/16"
FC9846-0608S	FC3680-0608S	FC3596-08S	3/8-18	-08	1.80"	0.91"	0.34"	11/16"
FC9846-0808S	FC3680-0808S	FC3596-08S	1/2-14	-08	2.04"	1.16"	0.34"	7/8"
FC9846-0810S	FC3680-0810S	FC3443-08S	1/2-14	-10	2.04"	1.16"	0.44"	7/8"
FC9846-1212S	FC3680-1212S	FC3596-12S	3/4-14	-12	2.04"	1.16"	0.56"	1-1/16"
FC9846-1616S	FC3680-1616S	FC3596-16S	1-11-1/2	-16	2.32"	1.44"	0.80"	1-3/8"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
