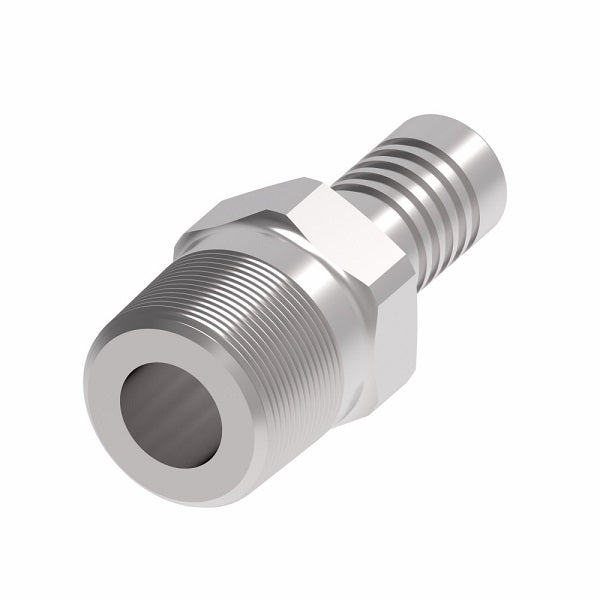

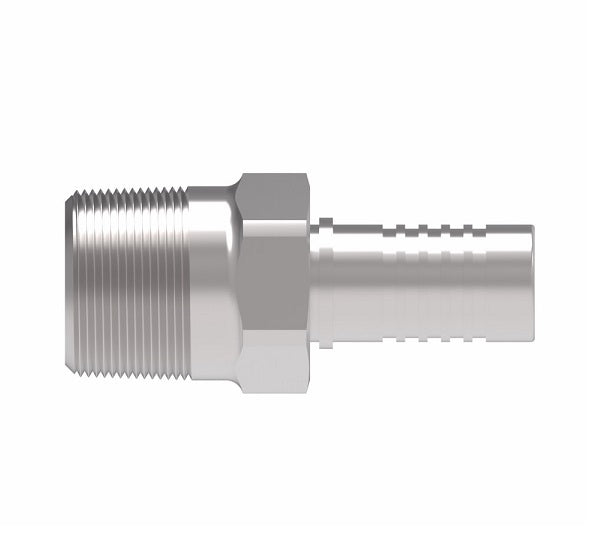

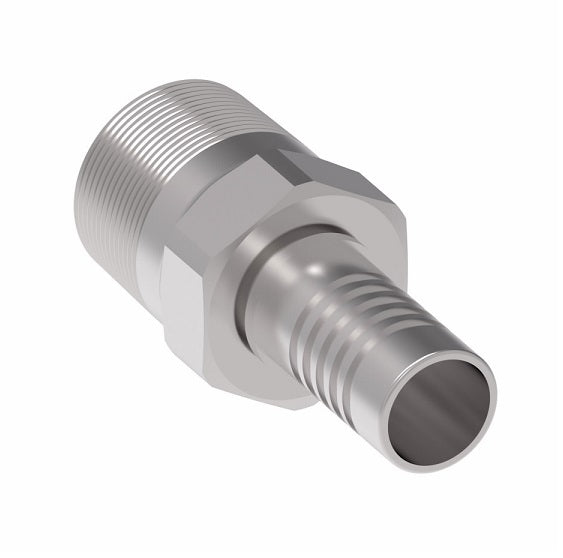

FC3680-0405S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -05 Hose Barb | Steel
FC3680-0405S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -05 Hose Barb | Steel
FC3680-0405S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -05 Hose Barb | Steel
FC3680-0405S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -05 Hose Barb | Steel

FC3680-0405S Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -05 Hose Barb | Steel

$29.16 - $29.16
$29.16
$29.16 - $29.16
$29.16

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC3680-0405S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 5/16in Hose Barb
Material(s): Steel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 2
FC9846-0204S FC3680-0204S FC3596-04S 1/8-27 -04 1.25" 0.66" 0.12" 7/16"
FC9846-0404S FC3680-0404S FC3596-04S 1/4-18 -04 1.50" 0.91" 0.12" 9/16"
FC9846-0405S FC3680-0405S FC3443-04S 1/4-18 -05 1.40" 0.91" 0.19" 9/16"
FC9846-0406S FC3680-0406S FC3443-05S 1/4-18 -06 1.40" 0.91" 0.25" 9/16"
FC9846-0606S FC3680-0606S FC3443-05S 3/8-18 -06 1.40" 0.91" 0.25" 11/16"
FC9846-0608S FC3680-0608S FC3596-08S 3/8-18 -08 1.80" 0.91" 0.34" 11/16"
FC9846-0808S FC3680-0808S FC3596-08S 1/2-14 -08 2.04" 1.16" 0.34" 7/8"
FC9846-0810S FC3680-0810S FC3443-08S 1/2-14 -10 2.04" 1.16" 0.44" 7/8"
FC9846-1212S FC3680-1212S FC3596-12S 3/4-14 -12 2.04" 1.16" 0.56" 1-1/16"
FC9846-1616S FC3680-1616S FC3596-16S 1-11-1/2 -16 2.32" 1.44" 0.80" 1-3/8"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
