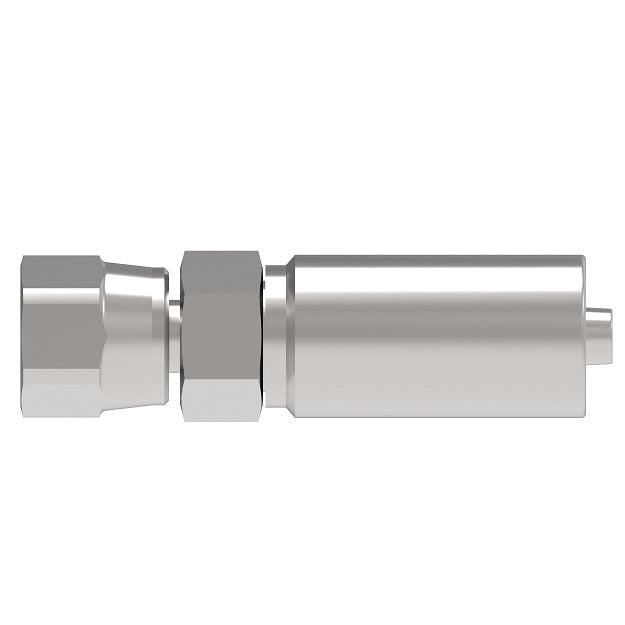

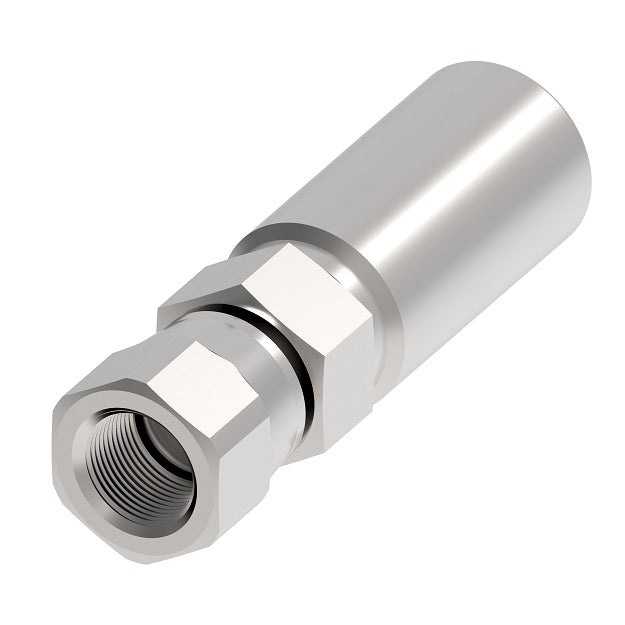

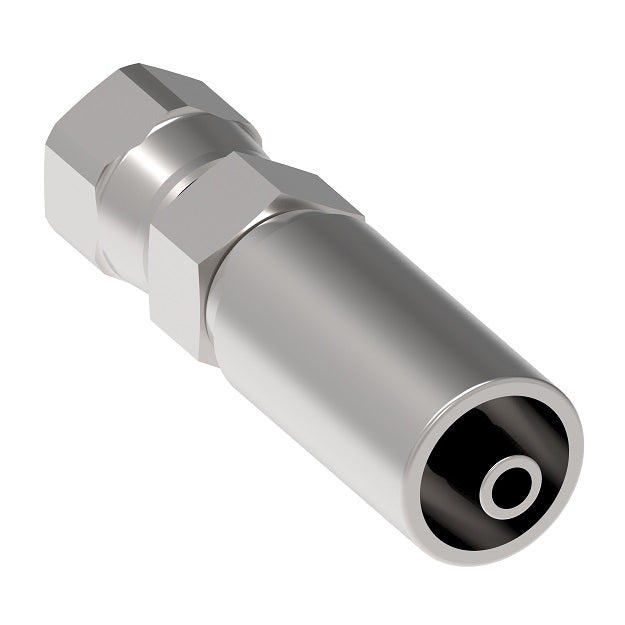

FC5810-0303S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -03 Female 37° JIC x -03 Hose Barb | Carbon Steel

FC5810-0303S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -03 Female 37° JIC x -03 Hose Barb | Carbon Steel

Name: FC5810-0303S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -03 Female 37° JIC x -03 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC5810-0303S Danfoss
Price: 100.57 USD
Availability: InStock

$100.57 - $100.57

$100.57

$100.57 - $100.57

$100.57

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC - Straight

Quantity

Specifications for Variant SKU: FC5810-0303S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/16in Female JIC, 3/16in Hose Barb
Material(s):	Carbon Steel

Part Number Carbon Steel	Part Number Stainless Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter
FC5810-0302S	-	0.1875"	-03	0.08"	-
FC5810-0303S	-	-	-03	-	-
FC5810-0402S	-	0.25"	-04	0.08"	0.625"
FC5810-0403S	-	0.25"	-04	0.1"	0.625"
FC5810-0404S	FC5810-0404-259	0.25"	-04	0.15"	0.6875"
FC5810-0504S	-	0.3125"	-05	0.15"	0.6875"
FC5810-0505S	-	0.3125"	-05	0.22"	-
FC5810-0604S	-	0.25"	-04	0.15"	0.6875"
FC5810-0605S	-	0.375"	-06	0.22"	-
FC5810-0606S	FC5810-0606-259	0.375"	-06	0.28"	0.8125"
FC5810-0806S	-	0.5"	-08	0.38"	1"
FC5810-0808S	-	0.5"	-08	0.38"	1"
FC5810-1008S	-	0.5"	-08	0.38"	-
FC5810-1010S	-	0.625"	-10	0.5"	-
FC5810-1012S	-	0.625"	-10	0.59"	-
FC5810-1212S	-	0.75"	-12	0.59"	-
FC5810-1616S	-	1"	-16	0.78"	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
