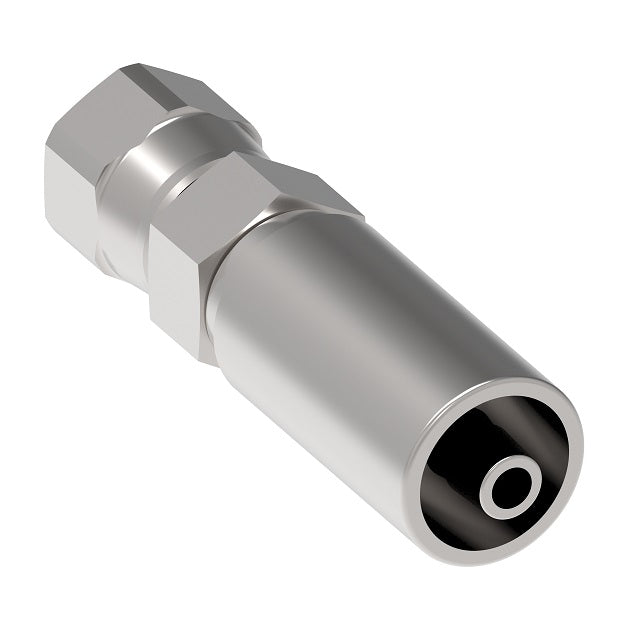

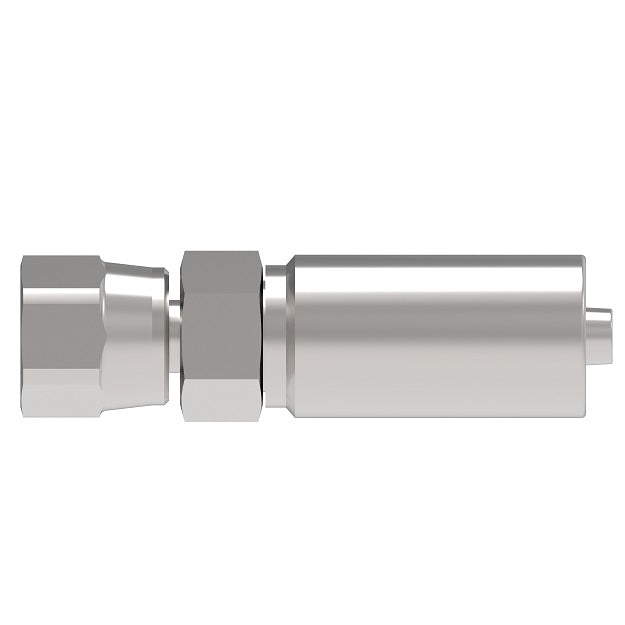

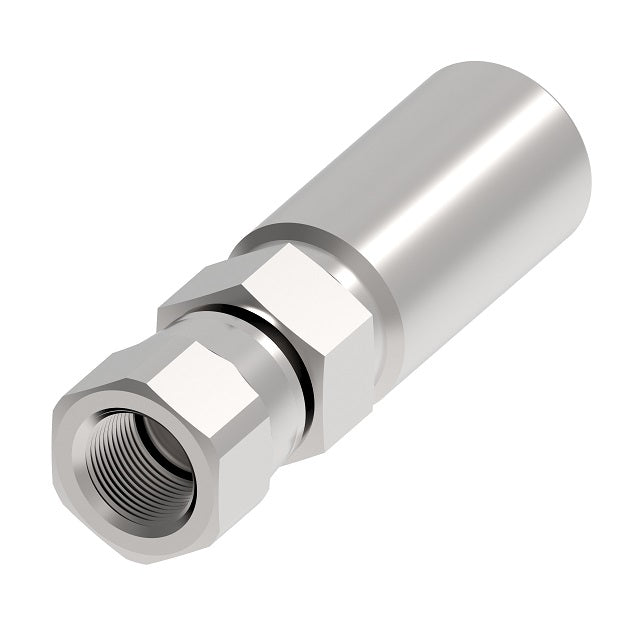

FC5810-0806S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -06 Hose Barb | Carbon Steel

FC5810-0806S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -06 Hose Barb | Carbon Steel

Name: FC5810-0806S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -06 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC5810-0806S Danfoss
Price: 54.24 USD
Availability: InStock

$54.24 - $54.24

$54.24

$54.24 - $54.24

$54.24

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC - Straight

Quantity

Specifications for Variant SKU: FC5810-0806S Danfoss
Brand:	Aeroquip
Ends Configuration:	1/2in Female JIC, 3/8in Hose Barb
Material(s):	Carbon Steel

Part Number Carbon Steel	Part Number Stainless Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter
FC5810-0302S	-	0.1875"	-03	0.08"	-
FC5810-0303S	-	-	-03	-	-
FC5810-0402S	-	0.25"	-04	0.08"	0.625"
FC5810-0403S	-	0.25"	-04	0.1"	0.625"
FC5810-0404S	FC5810-0404-259	0.25"	-04	0.15"	0.6875"
FC5810-0504S	-	0.3125"	-05	0.15"	0.6875"
FC5810-0505S	-	0.3125"	-05	0.22"	-
FC5810-0604S	-	0.25"	-04	0.15"	0.6875"
FC5810-0605S	-	0.375"	-06	0.22"	-
FC5810-0606S	FC5810-0606-259	0.375"	-06	0.28"	0.8125"
FC5810-0806S	-	0.5"	-08	0.38"	1"
FC5810-0808S	-	0.5"	-08	0.38"	1"
FC5810-1008S	-	0.5"	-08	0.38"	-
FC5810-1010S	-	0.625"	-10	0.5"	-
FC5810-1012S	-	0.625"	-10	0.59"	-
FC5810-1212S	-	0.75"	-12	0.59"	-
FC5810-1616S	-	1"	-16	0.78"	-
