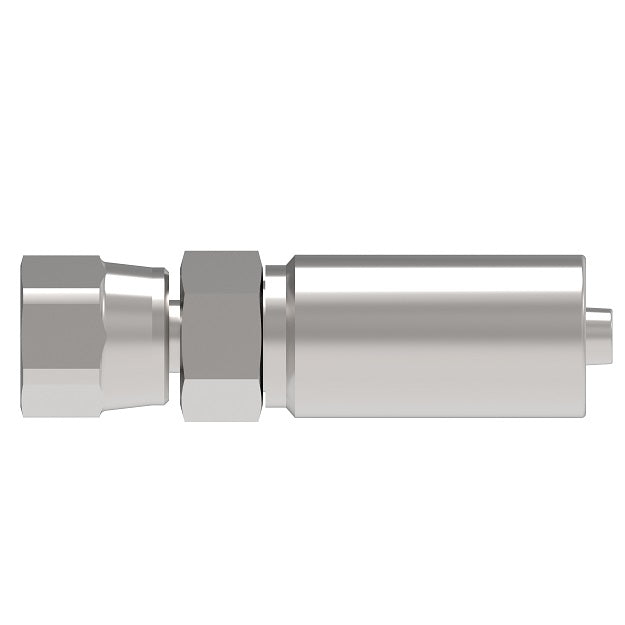

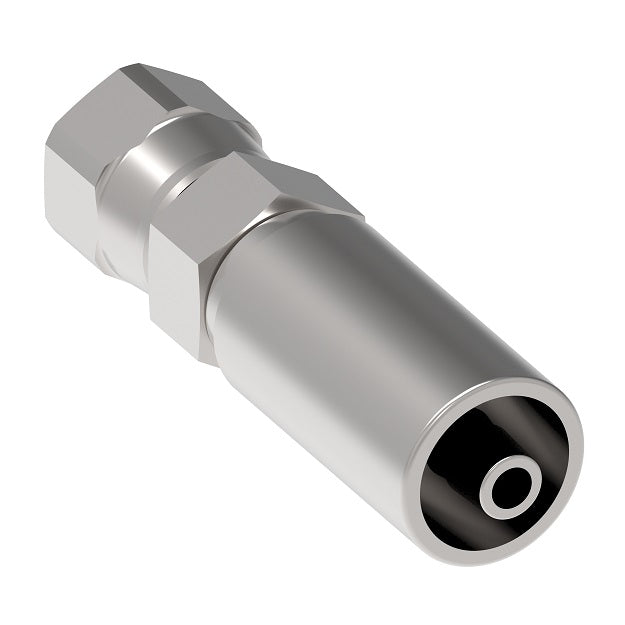

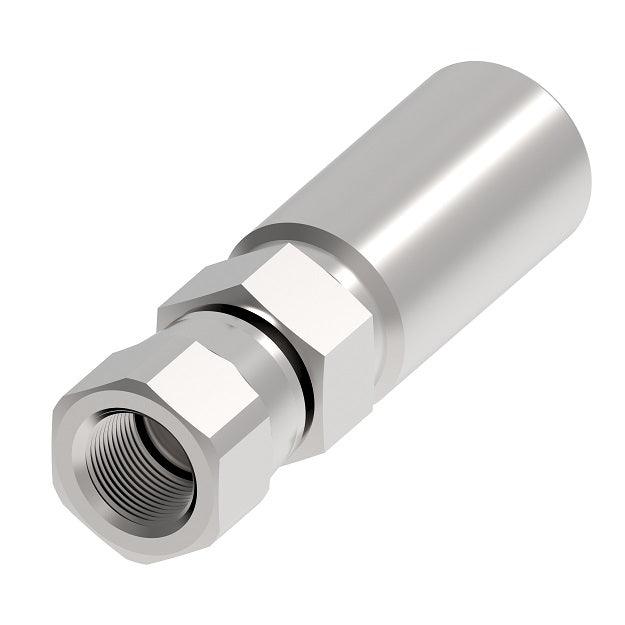

FC5810-0404-259 Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Female 37° JIC x -04 Hose Barb | Stainless Steel

FC5810-0404-259 Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Female 37° JIC x -04 Hose Barb | Stainless Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,852.00 - $1,852.00

$1,852.00

$1,852.00 - $1,852.00

$1,852.00

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC - Straight

Specifications for Variant SKU: FC5810-0404-259 Danfoss \| 10 \|
Brand:	Aeroquip
Ends Configuration:	1/4in Female JIC, 1/4in Hose Barb
Material(s):	Stainless Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series \| FC370 Series

Part Number Carbon Steel	Part Number Stainless Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter
FC5810-0302S	-	0.1875"	-03	0.08"	-
FC5810-0303S	-	-	-03	-	-
FC5810-0402S	-	0.25"	-04	0.08"	0.625"
FC5810-0403S	-	0.25"	-04	0.1"	0.625"
FC5810-0404S	FC5810-0404-259	0.25"	-04	0.15"	0.6875"
FC5810-0504S	-	0.3125"	-05	0.15"	0.6875"
FC5810-0505S	-	0.3125"	-05	0.22"	-
FC5810-0604S	-	0.25"	-04	0.15"	0.6875"
FC5810-0605S	-	0.375"	-06	0.22"	-
FC5810-0606S	FC5810-0606-259	0.375"	-06	0.28"	0.8125"
FC5810-0806S	-	0.5"	-08	0.38"	1"
FC5810-0808S	-	0.5"	-08	0.38"	1"
FC5810-1008S	-	0.5"	-08	0.38"	-
FC5810-1010S	-	0.625"	-10	0.5"	-
FC5810-1012S	-	0.625"	-10	0.59"	-
FC5810-1212S	-	0.75"	-12	0.59"	-
FC5810-1616S	-	1"	-16	0.78"	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
