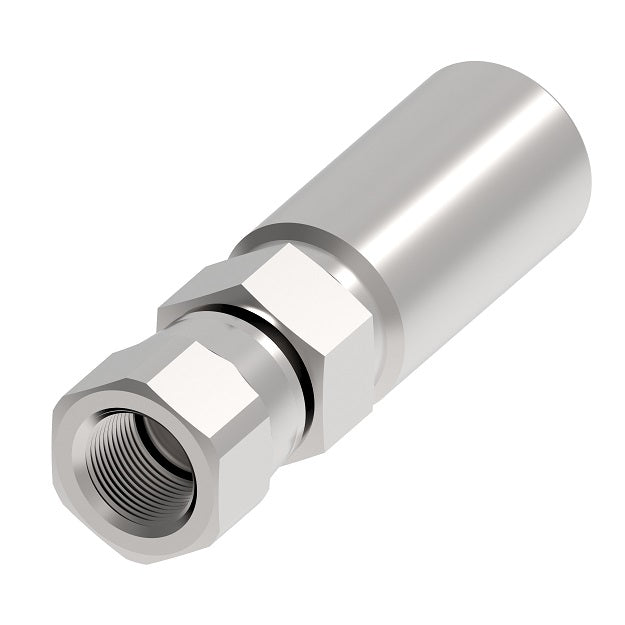

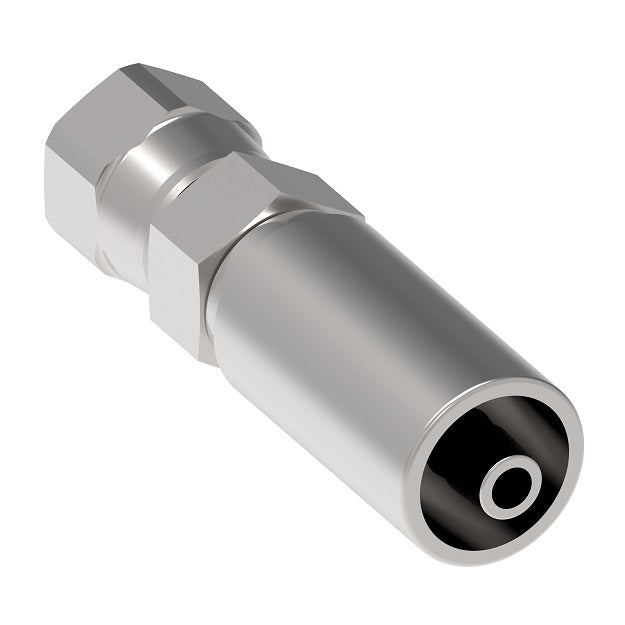

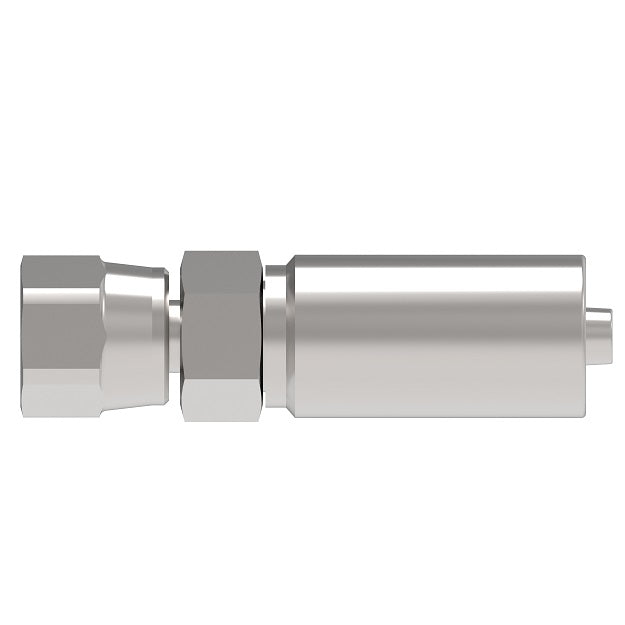

FC5810-0808S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -08 Hose Barb | Carbon Steel
FC5810-0808S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -08 Hose Barb | Carbon Steel
FC5810-0808S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -08 Hose Barb | Carbon Steel
FC5810-0808S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -08 Hose Barb | Carbon Steel

FC5810-0808S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Female 37° JIC x -08 Hose Barb | Carbon Steel

$12.75 - $12.75
$12.75
$12.75 - $12.75
$12.75

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC - Straight
Specifications for Variant SKU: FC5810-0808S Danfoss
Brand: Aeroquip
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb
Material(s): Carbon Steel
Compatible with the following Series: 3130 Series  |   37AL Series  |   3740 Series  |   FC370 Series
Part Number
Carbon Steel		 Part Number
Stainless Steel		 Compatible
Hose ID		 Hose Dash
Size		 Inside
Diameter		 Outside
Diameter
FC5810-0302S - 0.1875" -03 0.08" -
FC5810-0303S - - -03 - -
FC5810-0402S - 0.25" -04 0.08" 0.625"
FC5810-0403S - 0.25" -04 0.1" 0.625"
FC5810-0404S FC5810-0404-259 0.25" -04 0.15" 0.6875"
FC5810-0504S - 0.3125" -05 0.15" 0.6875"
FC5810-0505S - 0.3125" -05 0.22" -
FC5810-0604S - 0.25" -04 0.15" 0.6875"
FC5810-0605S - 0.375" -06 0.22" -
FC5810-0606S FC5810-0606-259 0.375" -06 0.28" 0.8125"
FC5810-0806S - 0.5" -08 0.38" 1"
FC5810-0808S - 0.5" -08 0.38" 1"
FC5810-1008S - 0.5" -08 0.38" -
FC5810-1010S - 0.625" -10 0.5" -
FC5810-1012S - 0.625" -10 0.59" -
FC5810-1212S - 0.75" -12 0.59" -
FC5810-1616S - 1" -16 0.78" -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
