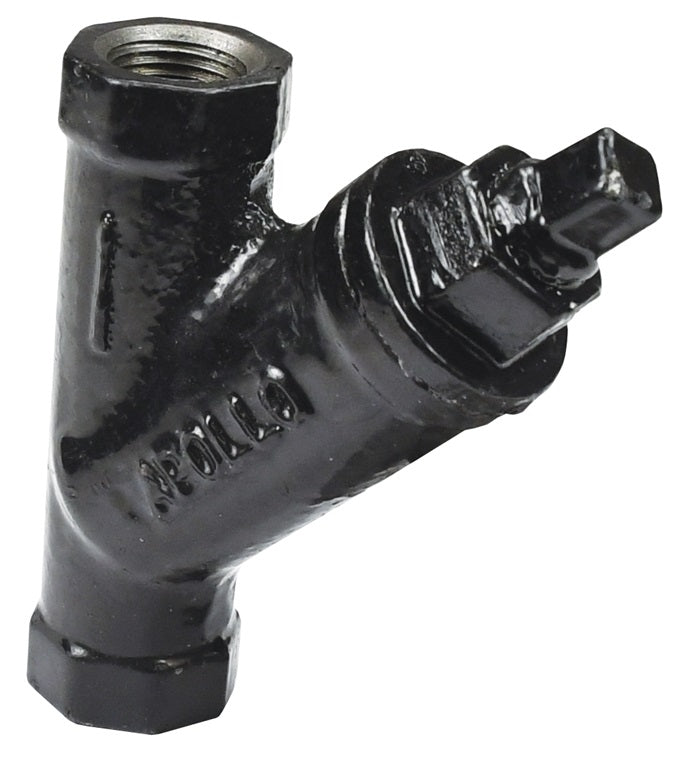

Y004 by Dixon Valve | Y Line Strainer | 20 x 20 Mesh Screen | 3/4" Female NPT x 3/4" Female NPT | Cast Iron

Y004 by Dixon Valve | Y Line Strainer | 20 x 20 Mesh Screen | 3/4" Female NPT x 3/4" Female NPT | Cast Iron

Save $0.39 Save $0.39
$52.07
$52.07 - $52.07
$52.07
$51.68
$51.68 - $51.68
$51.68

Dixon Valve
Y Line Strainer | Cast Iron
Specifications for Variant SKU: Y004 Dixon
Shape (Orientation): Y
Ends Configuration: \3/4\ Female NPT, 3/4\ Female NPT, Some Ends Match\
Material(s): Iron
Features:
  • Plug ported for blowdown service.
  • No replacement screens available.
Material:
  • Body: Cast Iron
  • Graphite gasket
Specification:
  • Working pressure: 500 PSI CWP; 250 PSI SWP
  • Maximum temperature: 406°F (208°C)
Cast Iron
Part Number		 Female NPT Mesh Type
Y001 1/4" 20 x 20 Mesh
Y002 3/8" 20 x 20 Mesh
Y003 1/2" 20 x 20 Mesh
Y004 3/4" 20 x 20 Mesh
Y005 1" 20 x 20 Mesh
Y006 1-1/4" 20 x 20 Mesh
Y007 1-1/2" 20 x 20 Mesh
Y008 2" 20 x 20 Mesh
