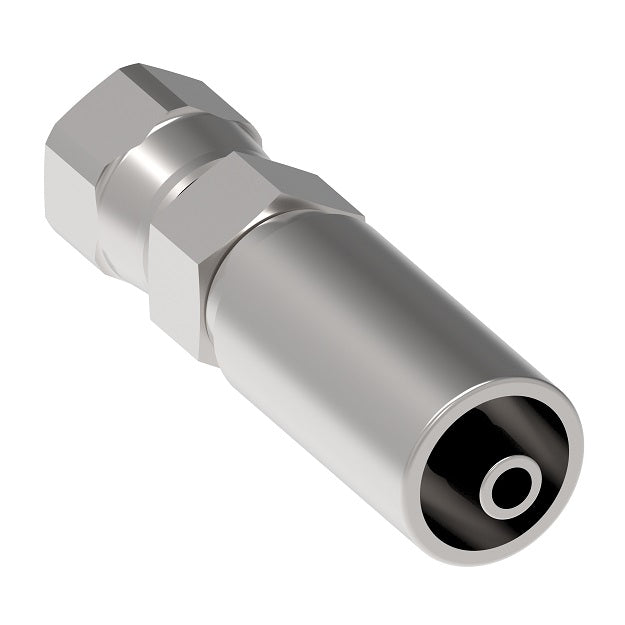

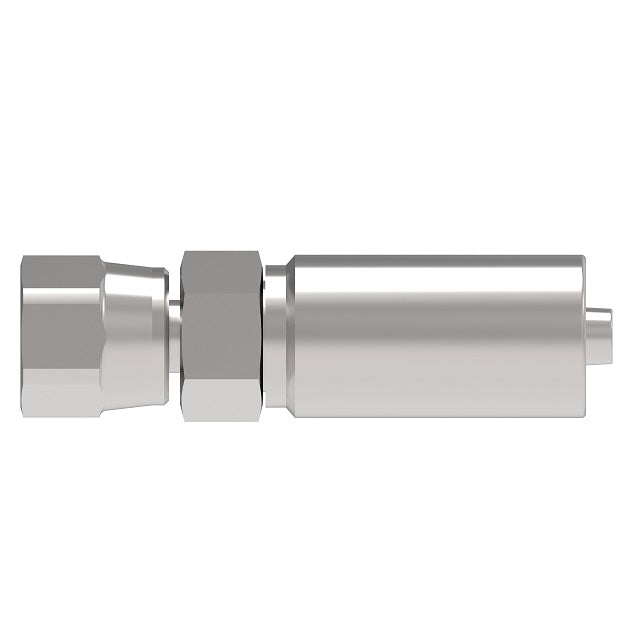

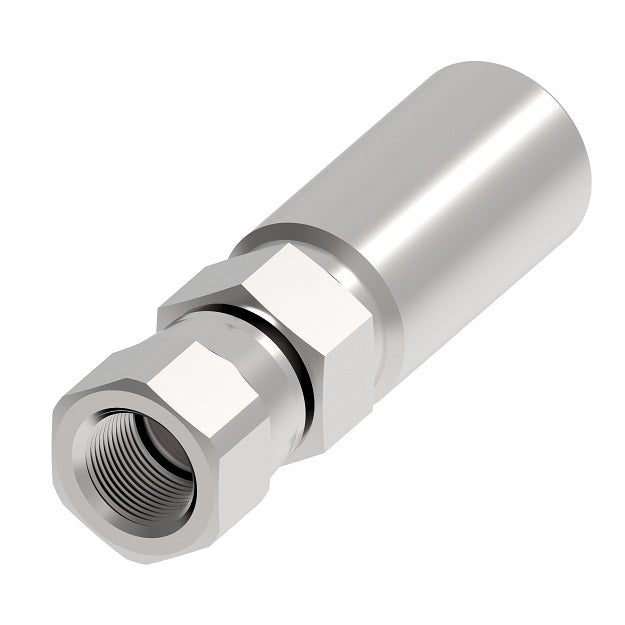

FC5810-0404S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Female 37° JIC x -04 Hose Barb | Carbon Steel
FC5810-0404S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Female 37° JIC x -04 Hose Barb | Carbon Steel
FC5810-0404S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Female 37° JIC x -04 Hose Barb | Carbon Steel
FC5810-0404S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Female 37° JIC x -04 Hose Barb | Carbon Steel

FC5810-0404S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Female 37° JIC x -04 Hose Barb | Carbon Steel

$9.53 - $9.53
$9.53
$9.53 - $9.53
$9.53

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC - Straight
Specifications for Variant SKU: FC5810-0404S Danfoss
Brand: Aeroquip
Ends Configuration: 1/4in Female JIC, 1/4in Hose Barb
Material(s): Carbon Steel
Compatible with the following Series: 3130 Series  |   37AL Series  |   3740 Series  |   FC370 Series
Part Number
Carbon Steel		 Part Number
Stainless Steel		 Compatible
Hose ID		 Hose Dash
Size		 Inside
Diameter		 Outside
Diameter
FC5810-0302S - 0.1875" -03 0.08" -
FC5810-0303S - - -03 - -
FC5810-0402S - 0.25" -04 0.08" 0.625"
FC5810-0403S - 0.25" -04 0.1" 0.625"
FC5810-0404S FC5810-0404-259 0.25" -04 0.15" 0.6875"
FC5810-0504S - 0.3125" -05 0.15" 0.6875"
FC5810-0505S - 0.3125" -05 0.22" -
FC5810-0604S - 0.25" -04 0.15" 0.6875"
FC5810-0605S - 0.375" -06 0.22" -
FC5810-0606S FC5810-0606-259 0.375" -06 0.28" 0.8125"
FC5810-0806S - 0.5" -08 0.38" 1"
FC5810-0808S - 0.5" -08 0.38" 1"
FC5810-1008S - 0.5" -08 0.38" -
FC5810-1010S - 0.625" -10 0.5" -
FC5810-1012S - 0.625" -10 0.59" -
FC5810-1212S - 0.75" -12 0.59" -
FC5810-1616S - 1" -16 0.78" -
