FF595-16 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1" Flange Size | Steel

Name: FF595-16 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1" Flange Size | Steel
Brand: Danfoss/Eaton
SKU: FF595-16 Danfoss
Price: 72.2 USD
Availability: InStock

$72.20 - $72.20

$72.20

$72.20 - $72.20

$72.20

Aeroquip® by Danfoss
SAE Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF595-16 Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	1in Code 62 Flange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Technical Info:
Crimp Fitting Socket Data.PDF
Specifications:
O-Ring material: Buna-N 90 Durometer Temperature range: -40°F to +250°F (-40°C to + 121°C)
Note:
Note: Code 62 split flange kits cannot be used with Cat flange fittings. Use existing split flanges.

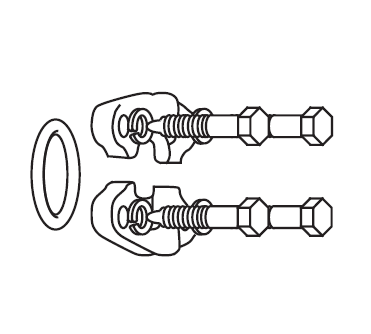

	Components Included in Complete Kit:
Complete Kit Part Number	Flange Halves (2 required) Part Number	Buna-N O-Ring (1 required) Part Number	Bolts (4 required) Part Number	Lock washer (4 required) Part Number	Nominal Flange Size	A	B	C	Bolt torque lb.-in
FF595-12	FC3425-12-449	FF9446-214	FF9442-0624-94	210104-6S	3/4"	2.00"	0.94"	0.42"	300-400
FF595-16	FC3425-16-449	FF9446-219	FF9442-0728-94	210104-7S	1"	2.25"	1.10"	0.50"	500-600
FF595-20	FC3425-20-449	FF9446-222	FF9442-0828-94	210104-8S	1-1/4"	2.62"	1.24"	0.60"	750-900
FF595-24	FC3425-24-449	FF9446-225	FF9442-1036-94	210104-10S	1-1/2"	3.12"	1.44"	0.66"	1400-1600
FF595-32	FC3425-32-449	FF9446-228	FF9442-1244-94	210104-12S	2"	3.81"	1.76"	0.78"	2400-2600
