FF595-20 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1-1/4" Flange Size | Steel

FF595-20 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1-1/4" Flange Size | Steel

$107.70 - $107.70
$107.70
$107.70 - $107.70
$107.70

Aeroquip® by Danfoss
SAE Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF595-20 Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1-1/4in Code 62 Flange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Technical Info:
Specifications:
  • O-Ring material: Buna-N 90 Durometer
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)
Note:
  • Note: Code 62 split flange kits cannot be used with Cat flange fittings. Use existing split flanges.

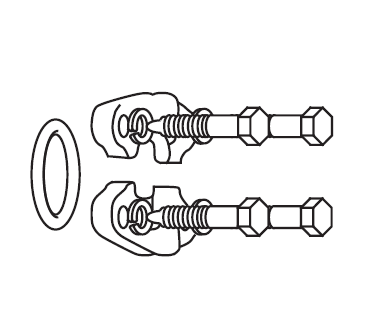

Components Included in Complete Kit:
Complete Kit
Part Number 		Flange Halves
(2 required)
Part Number 		Buna-N O-Ring
(1 required)
Part Number 		Bolts
(4 required)
Part Number 		Lock washer
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FF595-12 FC3425-12-449 FF9446-214 FF9442-0624-94 210104-6S 3/4" 2.00" 0.94" 0.42" 300-400
FF595-16 FC3425-16-449 FF9446-219 FF9442-0728-94 210104-7S 1" 2.25" 1.10" 0.50" 500-600
FF595-20 FC3425-20-449 FF9446-222 FF9442-0828-94 210104-8S 1-1/4" 2.62" 1.24" 0.60" 750-900
FF595-24 FC3425-24-449 FF9446-225 FF9442-1036-94 210104-10S 1-1/2" 3.12" 1.44" 0.66" 1400-1600
FF595-32 FC3425-32-449 FF9446-228 FF9442-1244-94 210104-12S 2" 3.81" 1.76" 0.78" 2400-2600
